Boll-In stainless architectural bollards coordinating a public access route

ARCHITECTURAL ACCESS / CONFIGURABLE SYSTEMS

A simple post becomes a complete system.

Configure a consistent architectural bollard language across removable, surface-mounted, and embedded site conditions.

INSERTTURNSEAT

CHOOSE THE SITE INTERFACE

One visual language.
Three mounting systems.

Mounting condition changes the product, CAD, installation, and technical package. Choose it first; configure released values inside that product family.

01 / REMOVABLEFIRST DEVELOPMENT TRACK

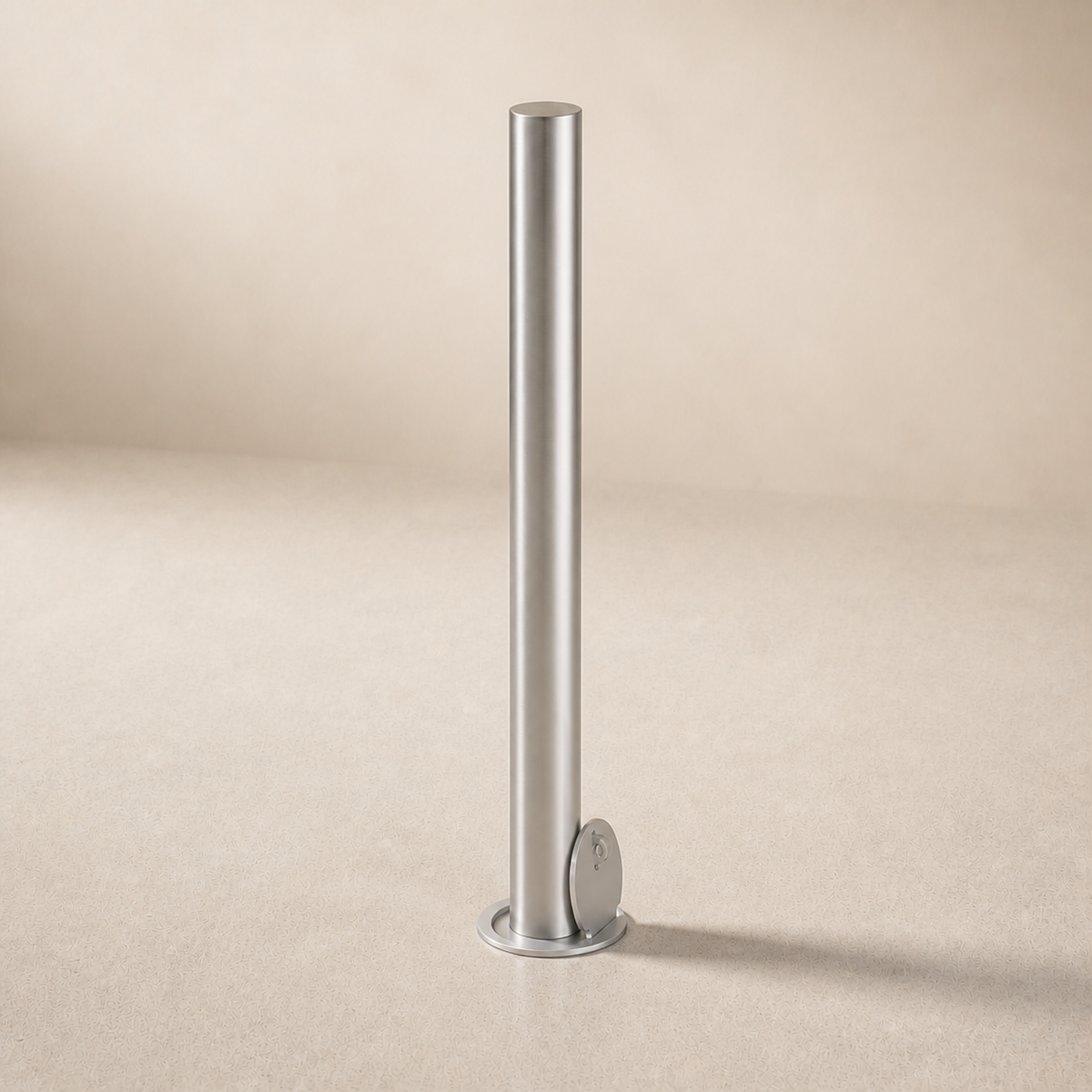

Boll-In removable stainless steel architectural bollard with hinged flush receiver lid

Removable receiver

A removable post coordinated with its matched receiver, closure, foundation, drainage, operation, and storage plan.

Specify
Post + receiver + closure
Search
Removable stainless steel bollard
Review the removable system
02 / SURFACEDRAFT PRODUCT

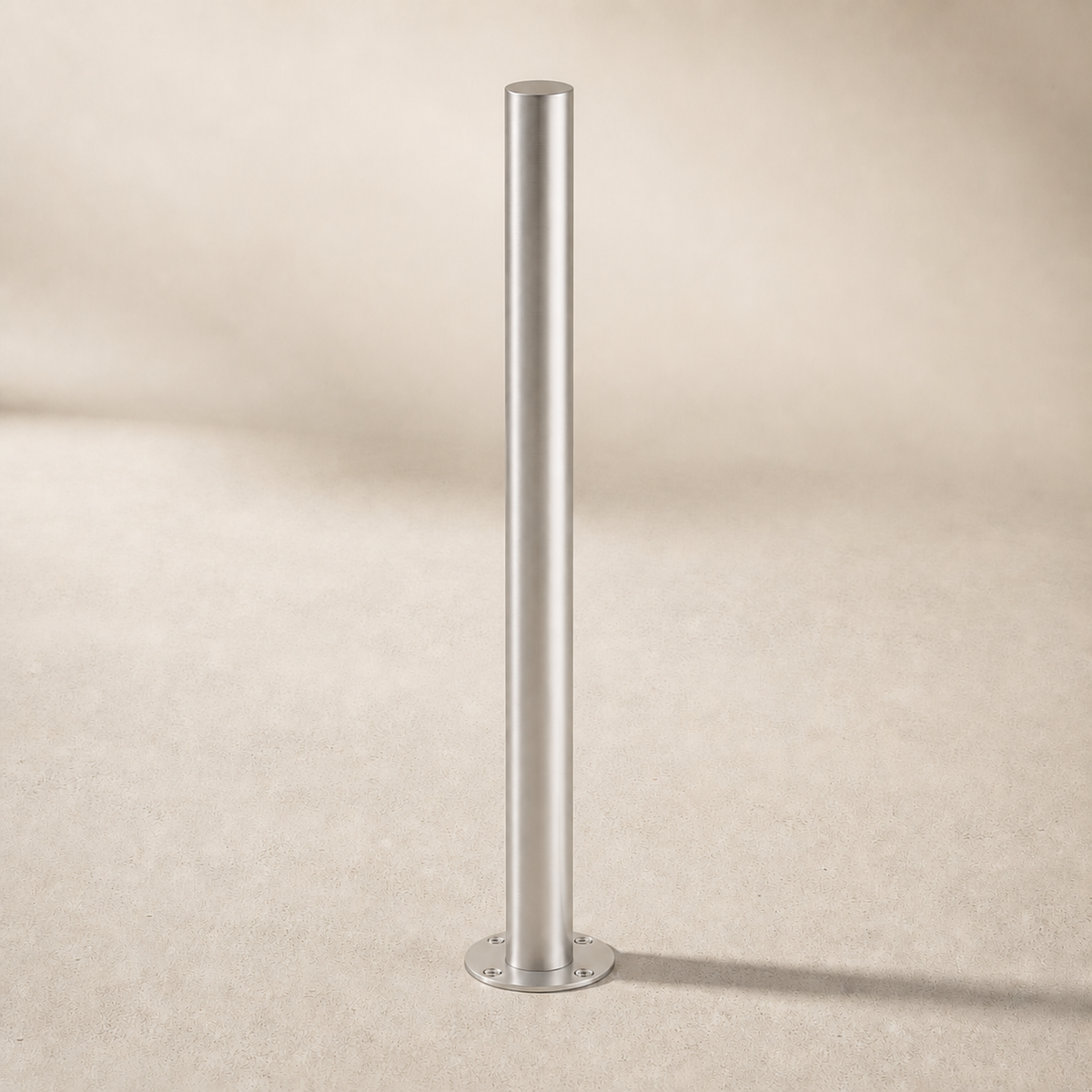

Boll-In surface-mounted stainless steel architectural bollard with round stainless base plate

Surface mounted

A top-mounted post coordinated with its base plate, cover geometry, anchors, substrate, and edge conditions.

Specify
Post + base + anchors
Search
Surface mount stainless steel bollard
Start a surface-mount project
03 / EMBEDDEDDRAFT PRODUCT

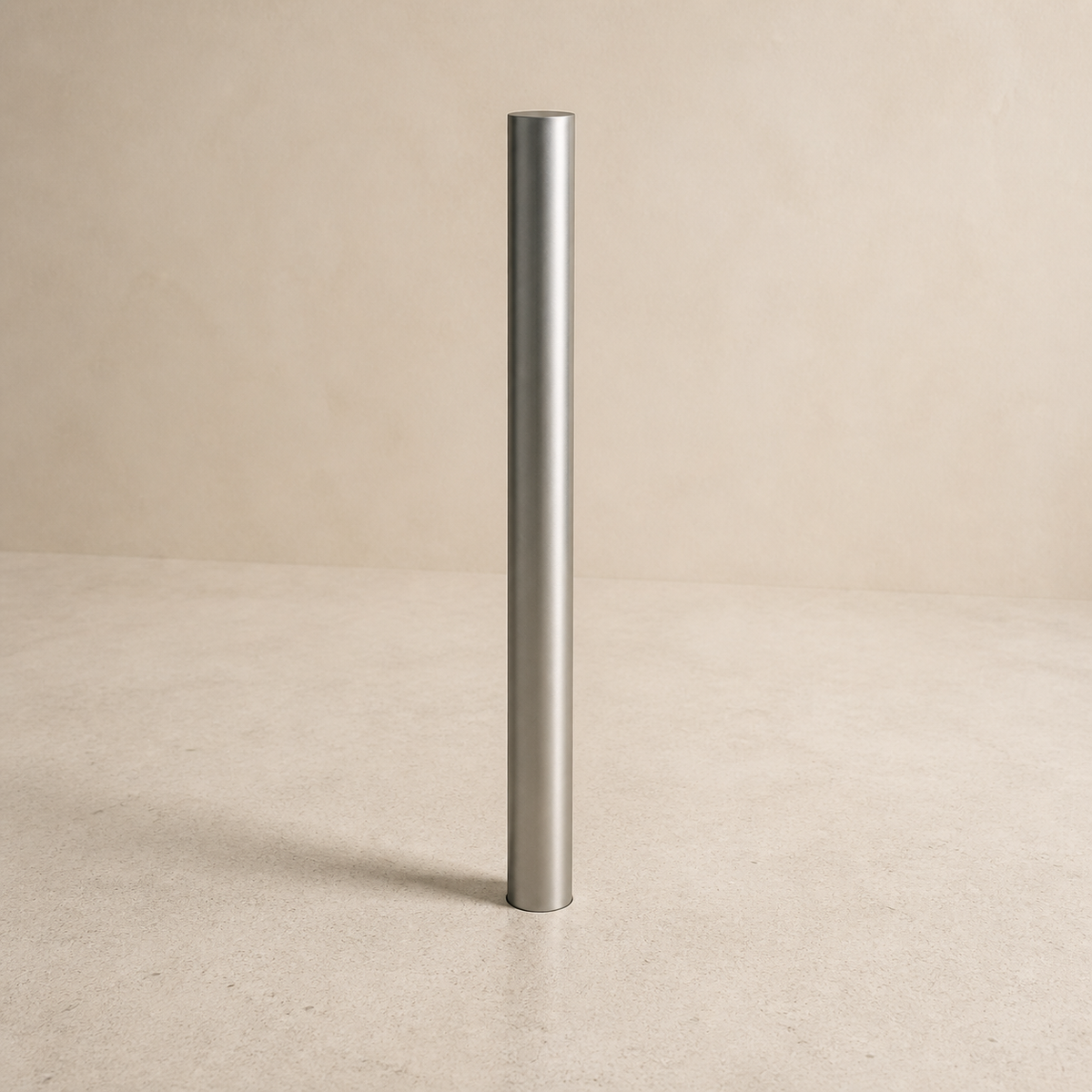

Boll-In direct-embedded stainless steel architectural bollard

Embedded

A permanent post coordinated with embed depth, foundation, drainage, and surrounding paving or construction.

Specify
Post + embed + foundation
Search
Embedded stainless steel bollard
Start an embedded project
Boll-In CONTROLLED GEOMETRY / REMOVABLE SYSTEM

REMOVABLE SYSTEM / FIRST DEVELOPMENT TRACK

Built to move.
Seated to stay.

The exposed post, 60-degree cam-cut stem, matched receiver, closure, foundation interface, drainage, operation, and storage plan are coordinated as one system.

  1. 01InsertPlace the matched post into the coordinated receiver.
  2. 02TurnRotate the cam-cut stem through the documented operating path.
  3. 03SeatConfirm the fully seated system state before use.

CONFIGURATION + PRODUCT KNOWLEDGE

Specify the system,
not just the post.

Each released selection should connect to its exact CAD geometry, product imagery, receiver or attachment data, installation guidance, and project-ready documentation.

01 / TOPOLOGY

Mounting system

Choose removable, surface-mounted, or embedded before configuring values within that family.

02 / GEOMETRY

Post configuration

Bind released diameter and above-grade height values to exact CAD geometry and product imagery.

03 / FINISH

Material + finish

Present only released material and finish choices with controlled visual confirmation.

04 / PROJECT

Technical package

Carry the selection, site interface, installation guidance, and unresolved conditions into project review.

PROJECT INTAKE

Bring us the plan, opening, or access problem.

We will identify the mounting topology, information gaps, configuration path, and technical package needed for review.

Project review is not a substitute for project-specific engineering, code review, or approved construction documents.
