PRIMARY PRODUCT VIEW CONNECTED PRODUCT MEDIA
Boll-In removable stainless steel architectural bollard with hinged flush receiver lid
PRIMARY CONNECTED VIEW / BOLL-IN REMOVABLE STAINLESS STEEL BOLLARD SYSTEM

BOLL-IN / PRODUCT VARIANT EXPERIENCE

Configure the removable assembly.

Every controlled dimension stays synchronized with the interactive model, selected variant, and Product Knowledge record.

01 / CONFIGURATION

Choose the post and receiver dimensions

01Diameter
02Above-grade height
03Below-grade depth

02 / INTERACTIVE FIT

Configured 3D + AR

Loading the selected fit model.

03 / CURRENT SELECTION

BOLLIN-REMOVABLE-D02-AG36-BG12

VISIBLE ASSEMBLYType 304 stainless · manually finished #6 satin · welded and blended
DIAMETER INFORMATION Resolved from the selected diameter

Actual outside diameter and typical pipe schedules remain attached to the selected variant.

PLANNING WEIGHT / HOLLOW Resolved from D and AG
PLANNING WEIGHT / CONCRETE FILLED Resolved from D and AG
Open Product Knowledge

BOLL-IN / SPECIFICATIONS + DOCUMENTATION + SUPPORT

Product knowledge

Boll-In Removable Stainless Steel Bollard System 2 in / 36 in / 12 in

EXO CONTROLLED DOCUMENT / DOCUMENT

Product document

Boll-In PRODUCT KNOWLEDGE DOCUMENT
CONTROLLED BY EXOLOX Development and Distribution
exolox® EXO PRODUCT KNOWLEDGE

CONTROLLED PRODUCT DOCUMENT / DOCUMENT

Product document

Product
Model
Configuration

Generated from the current approved EXO product package. Confirm project-specific requirements before release. PREVIEW

EXO SIGNAL CENTER

Product communications

ASK EXO

Ask about this product

Context: Boll-In Removable Stainless Steel Bollard System / 2 in / 36 in / 12 in

Boll-In removable stainless steel architectural bollard with hinged flush receiver lid

BOLL-IN / CONFIGURABLE REMOVABLE BOLLARD

Boll-In

Architectural Bollard Systems

Boll-In Removable Stainless Steel Bollard System

PROJECT PRICING CONFIGURE + QUOTE
SKU
BOLLIN-REMOVABLE-D02-AG36-BG12
Request this configuration

Choose a released post configuration and finish. Receiver placement, foundation, drainage, closure, storage, and project-specific performance remain part of the reviewed installation record.

01 / ACCESS

Keep the opening adaptable

Use a removable post where the protected line needs to open for authorized vehicles, service, events, or changing site operations.

02 / CONFIGURATION

Choose the post geometry

Diameter and above-grade height stay connected to the matched post, stem, receiver, and product record.

03 / DROP-CLOCK

Seat the cam into the receiver

The 60-degree cam-cut stem turns, drops, and wedges into its matched receiver to create a tight, repeatable seated condition.

04 / FINISH

Finish the exposed post

Material, surface direction, cap, visible transitions, and handling remain tied to the selected configuration.

THE BOLL-IN DIFFERENCE

A removable post that seats like it belongs there.

Flexible access without changing the architectural language.

The Boll-In Removable Stainless Steel Bollard System gives entrances, promenades, event routes, and service areas a clean post that can be removed when access is needed. The post and receiver are specified together so the exposed condition, closure, drainage, foundation interface, operating clearance, and storage can be planned as one coordinated system.

Configure the system

  • Choose from the released diameter and above-grade height options.
  • Coordinate the matched receiver, closure condition, foundation, drainage, and operating space.
  • Carry the selected configuration into product imagery, CAD, installation guidance, and project review.

Quote-only draft product. Final selections require project-specific review.

Boll-In removable bollard post, cam-cut stem, and matched receiver interface POST + CAM STEM + MATCHED RECEIVER / CONFIGURATION AS SHOWN

RECEIVER + OPERATION

A clean opening starts below the surface.

The visible post is only half the system. Boll-In coordinates the post, 60-degree cam-cut stem, receiver, site interface, closure, drainage, removal path, and storage condition before release.

01 / PLACE

Locate the receiver

Coordinate the clear opening, post spacing, concrete edge distances, drainage path, cap condition, and accessible removal route before installation.

02 / SEAT

Turn, drop, and wedge

Lower the matched stem into the receiver, rotate the post, and let the 60-degree cam surface draw the assembly into its seated position.

03 / CLEAR

Restore the opening

Reverse the motion, lift the post clear, store it as planned, and close or protect the receiver for the site condition.

04 / INTERFACE

Build from a reusable sleeve

The receiver architecture can support future post, signage, stanchion, and flagpole modules when the exact interface, loads, use, and engineering release are confirmed.

Start a Boll-In project
Confirm the current product record, receiver and foundation design, drainage, clearances, operating procedure, intended use, and project-specific performance requirements before release. No vehicle-impact or crash rating is implied unless explicitly published for the selected system.

KEEP BUILDING / EXO PRODUCT NETWORK

Complete the build.

Move from one product into the components, accessories, and systems that make the complete setup work.

RELATED / CONNECTED Selected to work better together

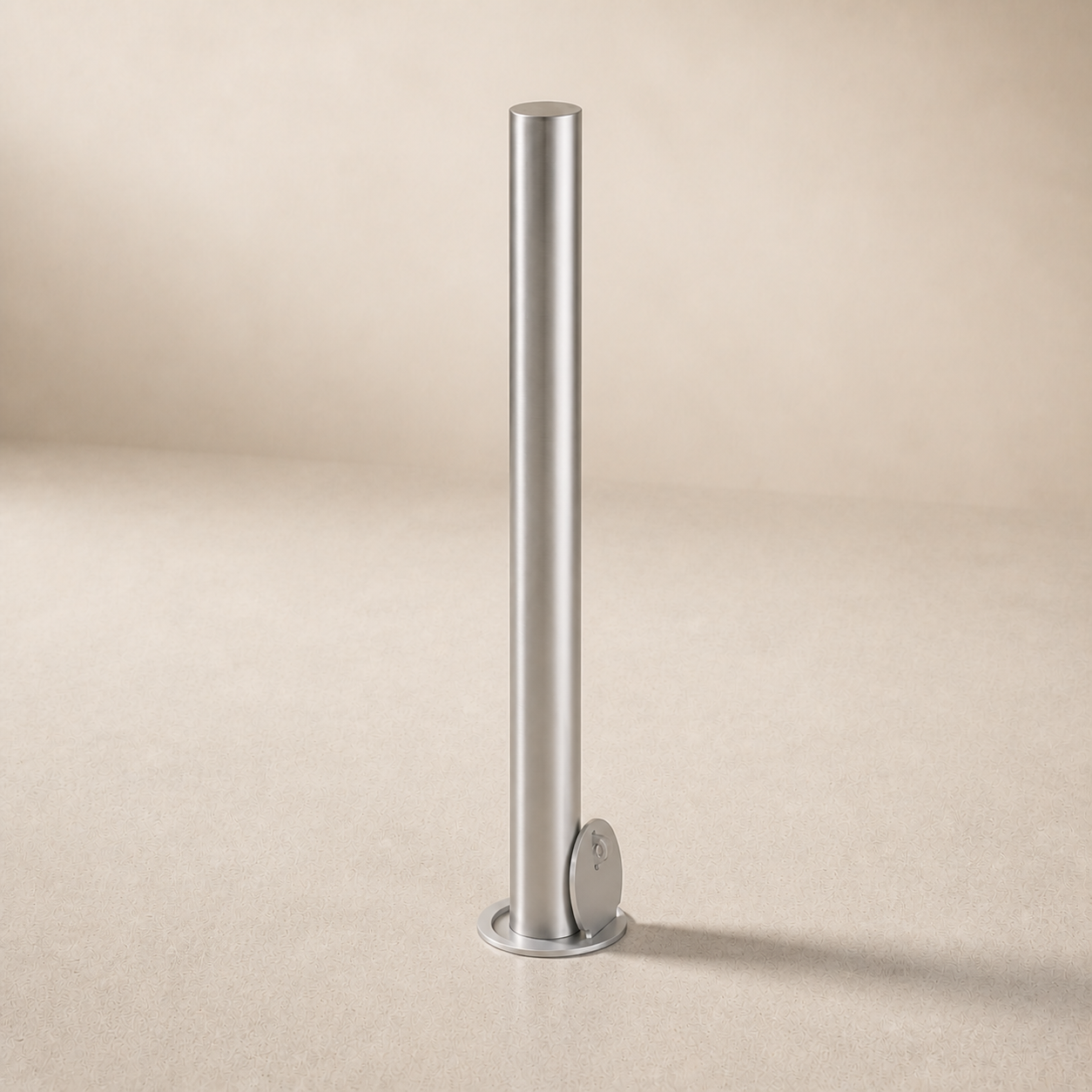

Boll-In removable bollard system prepared for a controlled access opening REMOVABLE TODAY / FIXED + PERMANENT FAMILIES FOLLOW

BOLL-IN / PLAN THE OPENING

Keep the boundary. Open the path.

Start with the removable Boll-In system now. Fixed and permanently mounted Boll-In families will use the same focused product, knowledge, and project architecture.

Start a Boll-In project Review product knowledge
