YOUR SELECTION / INTERACTIVE 3D

Loading your selected hardware…

CONNECTED PRODUCT VIEWS

See every angle.

Product views show connected catalog media. Finish and scale can vary by selected variant; the selected SKU and product specification control the order.

PRODUCT VIEW / 01 / 03

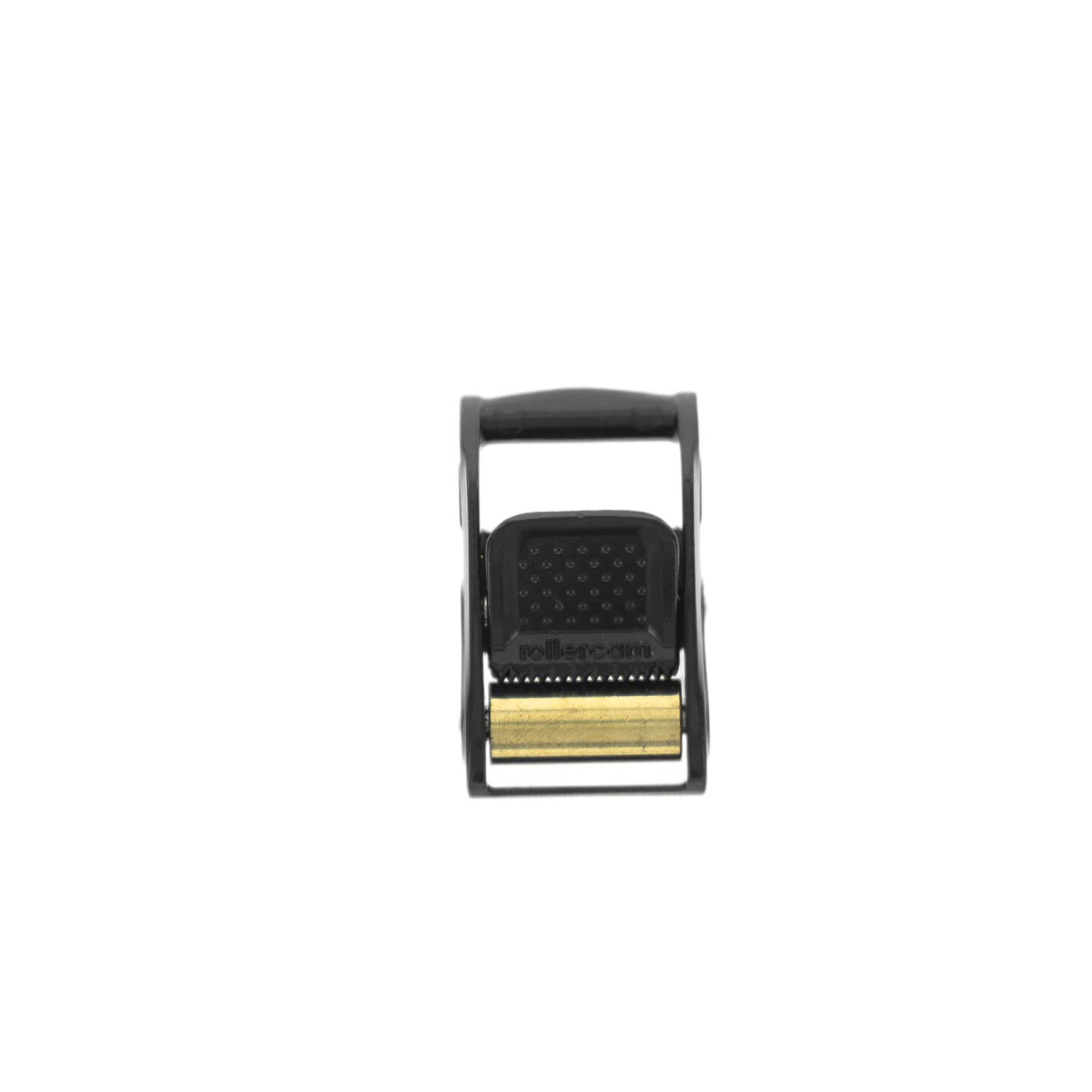

Rolling CAM black-finish buckle for 0.75 inch webbing
Rolling CAM black-finish buckle for 0.75 inch webbing

Fit + specifications

Match the buckle and WebWasher to your strap width. Choose fastener length for the mounting thickness and required engagement.

Widths

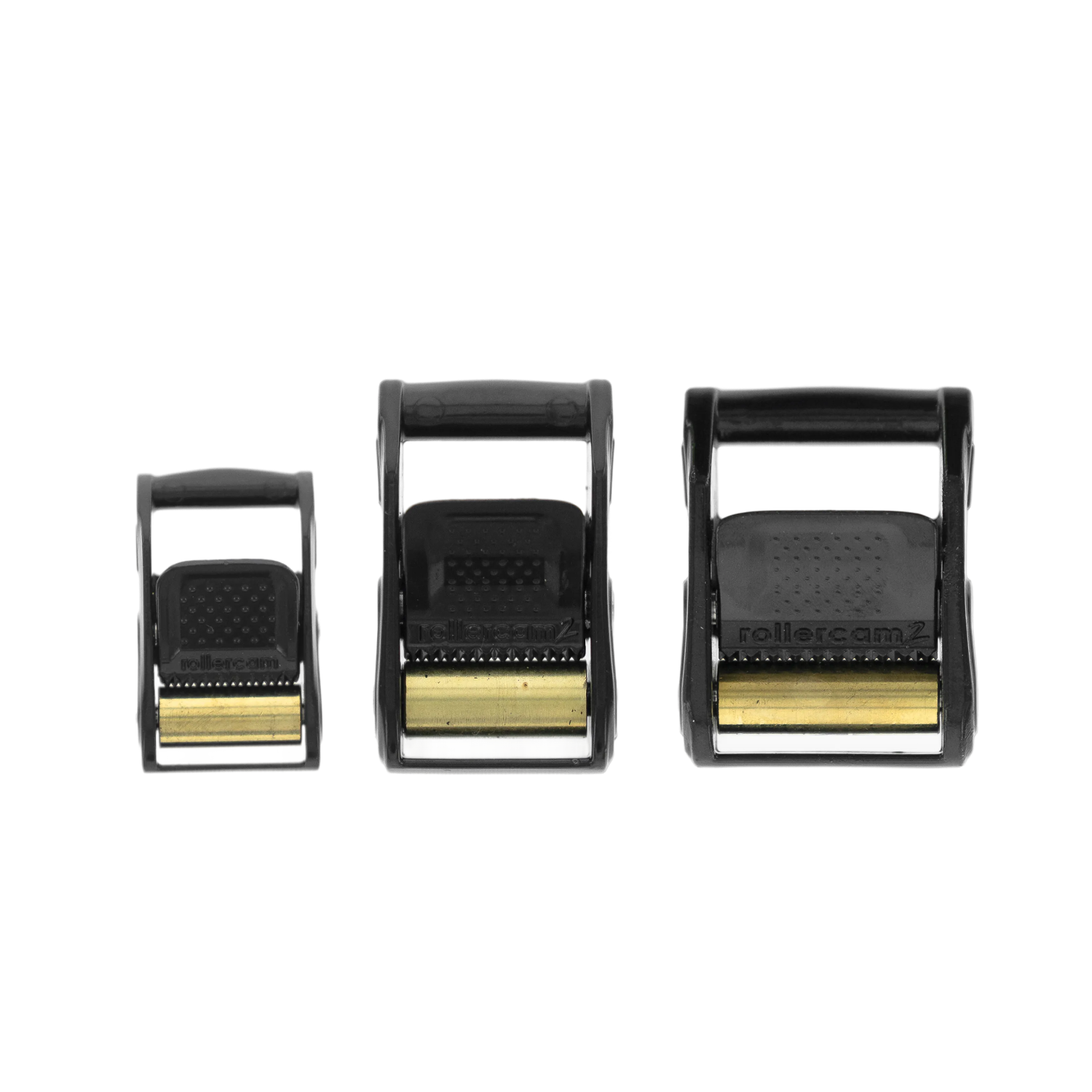

¾″ / 1″ / 1¼″
Buckle
Zamak 2 body and cam, brass roller, stainless springs and shafts
WebWasher + bolt finish
Raw stainless or black oxide stainless
MM Screw
Black ceramic-coated carbon steel; 1¾″, 2¼″ or 2¾″. Set includes an additional standard Flush EXOWASHER.
Strutnut
¼-20, no spring; zinc-plated steel or 304 stainless
Component working loads
¾″: 95 lb / 1″: 350 lb / 1¼″: 500 lb

Ratings apply to the buckle component. Complete-system capacity depends on webbing, fasteners, receiving structure and installation. The 3D view omits the mounting surface; verify fit and engagement. Not for climbing.

Ask about your application ↗
Reference images
