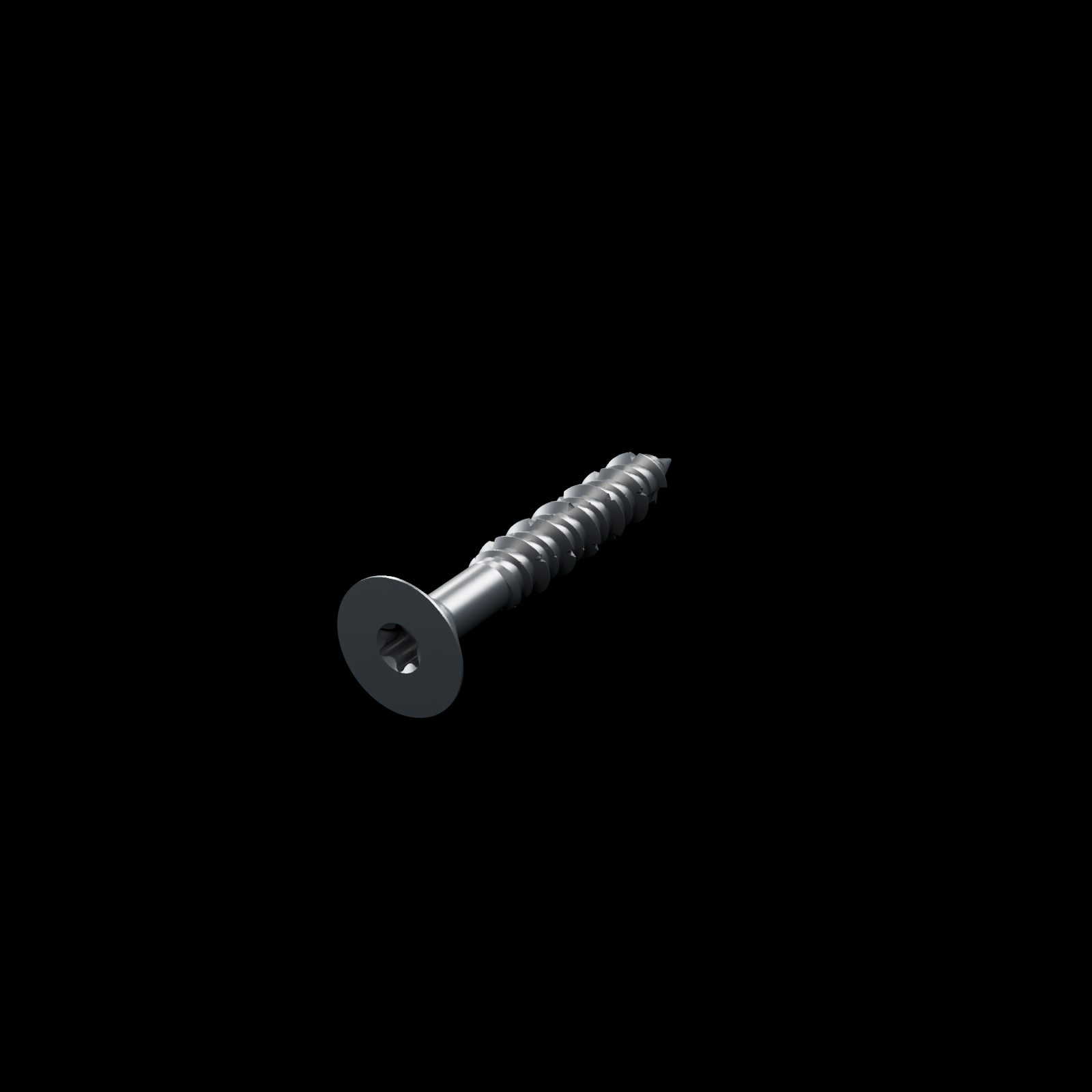

EXOHDW Multi-Material Screw selected length EXOHDW / MMS-14 / BLACK CERAMIC
SELECTED ENGAGEMENT LENGTH1.75 in

EXOHDW / UNIVERSAL CONNECTION HARDWARE

MULTI-MATERIAL SCREW.

Select the screw length for the receiving material, then keep the bearing interface controlled with the included black Flush EXOWASHER.

INCLUDED WITH EVERY SCREW

1 black Standard 1.00-inch Flush EXOWASHER. Matching Flat EXOWASHER, nuts, anchors, and specialized WebWashers are selected separately.

$1.50READY TO ORDER
01 / ENGAGEMENT LENGTHChoose the screw length
02 / PROJECT QUANTITYChoose the matched set size
SELECTED SKUEXO-HDW-MMS-14-175-BLK-01

Length is not a connection rating. Verify receiving material, pilot hole, embedment, edge distance, complete washer stack, torque, environment, and intended use.

ONE FASTENER / CONTROLLED INTERFACE GEOMETRY

Build the receiving-material connection first.

The screw provides engagement into the approved receiving material. The washer, bracket, plate, rail, or specialized webbing interface controls how load enters the connected component.

01 / UNIVERSAL HARDWARE

Seat the screw through a controlled bearing face.

  1. 01MULTI-MATERIAL SCREWSelected engagement length
  2. 02INCLUDED FLUSH EXOWASHERControlled bearing face
  3. 03CONNECTED COMPONENTBracket, plate, rail, or hardware body
  4. 04RECEIVING MATERIALConfirmed substrate and pilot preparation
  5. 05OPTIONAL OPPOSING HARDWAREFlat washer and nut when required
Configure EXOWASHER ↗
02 / SPECIALIZED WEBBING INTERFACE

Use WebWasher only when the connection is part of a controlled webbing path.

  1. 01SELECTED WEBWASHERMatches slotted LaserWeb or controlled webbing end geometry
  2. 02WEBBING-SPECIFIC COMPONENTRolyPulley or another reviewed strap-path interface
  3. 03MULTI-MATERIAL SCREWPasses through the controlled interface into receiving material
  4. 04VERIFIED INSTALLATIONControls embedment, edge distance, pilot hole, and torque
Configure WebWasher ↗

SUGGESTED EXOHDW COMPONENTS

Complete the controlled connection.

LOCATE + CAPTUREEXOWASHER

Pair the included Flush profile with a Flat EXOWASHER to create a controlled universal hardware interface.

CONFIGURE EXOWASHER ↗ CONNECT WEBBINGWebWasher

Use the webbing-specific interface where LaserWeb or another controlled slotted strap end joins the mounting system.

CONFIGURE WEBWASHER ↗ COMPLETE THE CONNECTIONAll EXOHDW

Continue with universal fasteners, washers, nuts, anchors, tools, and controlled hardware interfaces.

BROWSE EXOHDW ↗

PRODUCT DETAIL

Length changes. Interface logic stays controlled.

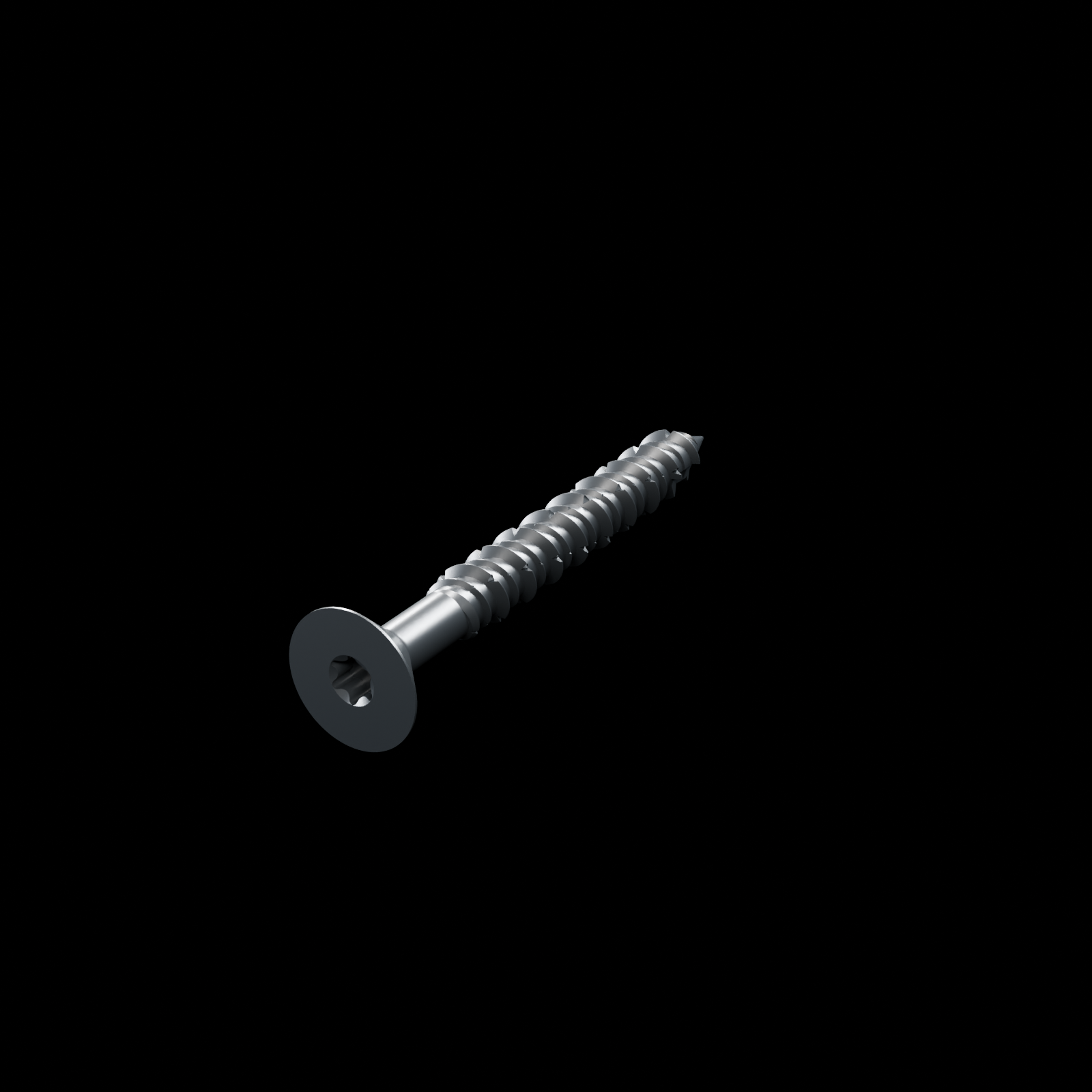

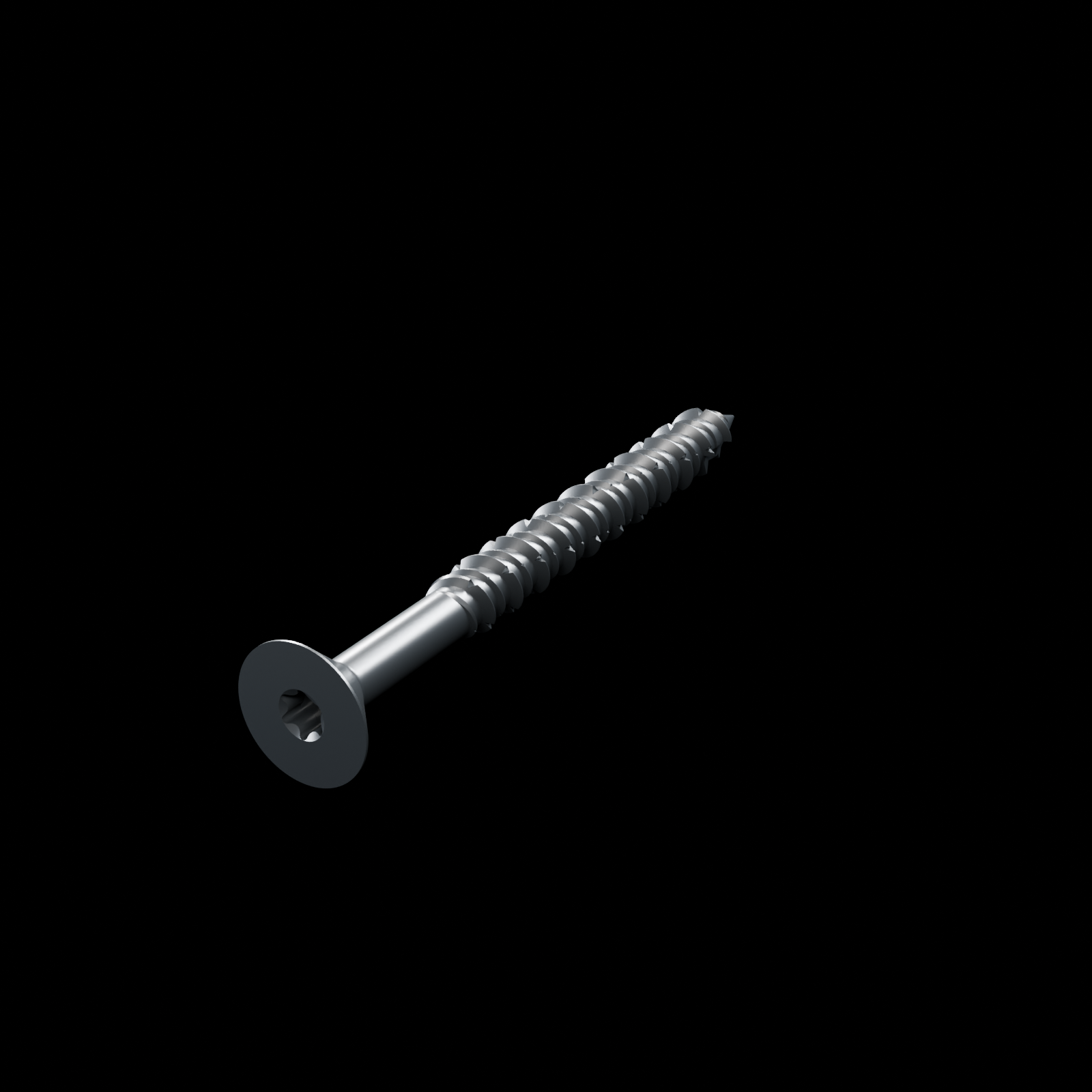

Choose the engagement length, then keep the EXO interface consistent. Each set pairs one black 1/4-inch multi-material screw with one black Standard 1.00-inch Flush EXOWASHER. Select a 1.75, 2.25, or 2.75 inch screw and a 1-set or 10-set pack; screw and included Flush EXOWASHER quantities always match.

Two controlled connection paths

RolyPulley + EXOWASHER: the included Flush EXOWASHER locates concentrically in the RolyPulley mounting hole. Add the matching Flat EXOWASHER on the opposite face to capture the pulley without binding its intended swivel, then use the screw to anchor the complete stack to an approved receiving material.

RolyPulley + WebWasher: use the screw as the structure-side fastener for the selected WebWasher or LaserWeb slotted-end interface. The screw passes through the controlled washer geometry; it does not replace it. Match the WebWasher footprint, slot, screw length, receiving material, pilot hole, embedment, edge distance, and torque to the connection.

Included with each set

  • One selected-length black ceramic-coated multi-material screw
  • One black Standard 1.00-inch Flush EXOWASHER

The matching Flat EXOWASHER, WebWasher, and RolyPulley are suggested system components and are sold separately.

Application boundary

This packaged set has no standalone load rating. Connection capacity depends on the receiving material, embedment, edge distance, complete washer and component stack, installation torque, environment, and intended use. Verify the current fastener source specification for the selected length and pre-drill where the receiving material or source instructions require it. The set is not automatically approved for structural, overhead, life-safety, fall-protection, or climbing applications.

COMPLETE THE EXOHDW CONNECTION

Build the full hardware stack.

Pair the selected engagement length with the washer, nut, anchor, bracket, plate, or rail required by the complete connection. Specialized webbing hardware continues in RolyPulley.
