EXT / 03
GAMEDAY EXT / PORTABLE FLAGPOLE SYSTEM
Gameday Flags EXT Extending Flagpole
THREE STAGES. ONE PULL. NO CLANG.
A portable, American-made flagpole that grows from a 10-foot-class transport height into a 30-foot-class display. Pull the flat strap to raise it. Release the Rollercam and guide the strap to bring it home.
- BASE
- 2 IN
- TOP
- 1-1/2 IN
- RANGE
- 10-30 FT CLASS
- MOTION
- ROLYPULLEY
MEASURED FROM THE SUPPLIED UP / DOWN GLB STATES

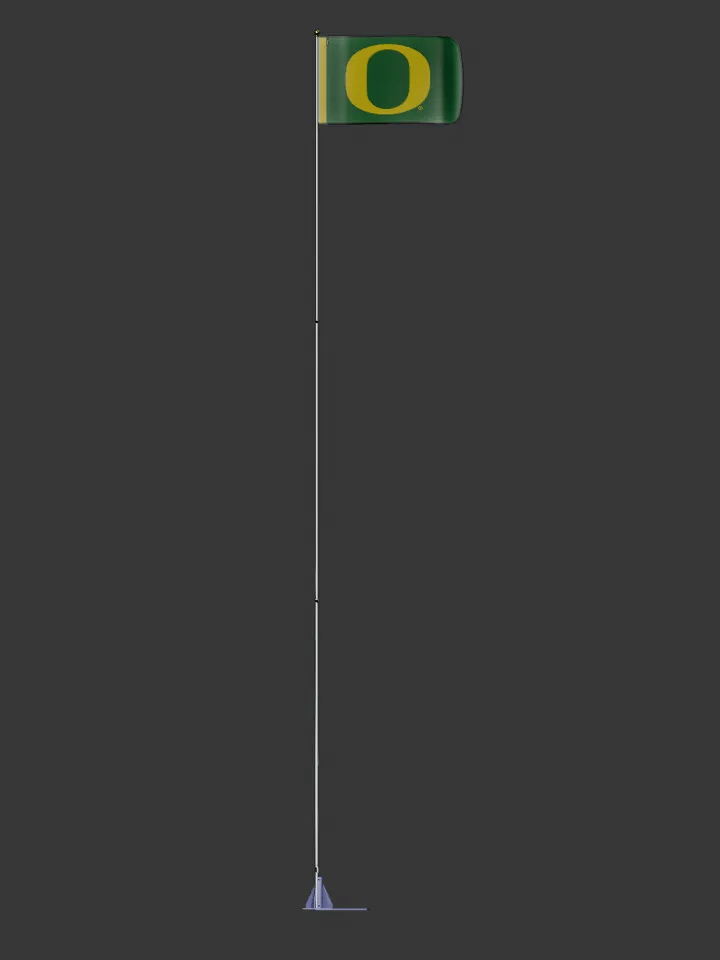

ROLYPULLEY / FLAT-STRAP MOTION
Pull once. Watch it grow.
RolyPulley turns one easy strap pull into coordinated movement across the nested pole stages. The system stays compact for transport, then rises into a full event-scale flag display without loose rope or noisy external metal rigging.
Pull the flat strap
A broad, comfortable webbing control gives you a clean handhold and a controlled lift.
RolyPulley shares the lift
The internal pulley system coordinates the nested sections so the pole extends smoothly from compact to event height.
Rollercam holds the height
The tactile Rollercam control captures the strap at the height you choose and keeps the operating end easy to reach.
Release and guide
Press the Rollercam release, keep one hand on the strap, and guide the pole down; the secondary return strap assists final retraction.
Operation animation preserves the supplied GLB geometry. Its approved web presentation uses brushed stainless pole stages, a polished brass ball finial, and the authored black operating hardware; it does not depict a fictional cutaway or invented internal route.
THE MOTION SYSTEM INSIDE EXT
Ten feet to thirty, by strap.
EXT uses flat webbing as its operating line and RolyPulley to turn that single pull into multi-stage movement. Flat strap is comfortable in the hand, packs neatly against the pole, and gives the Rollercam a wide, predictable surface to grip.
01PullOne accessible flat strap
02ExtendThree nested stages move together
03LockRollercam holds the selected height
EXT TOP ASSEMBLY / PRODUCT DETAIL

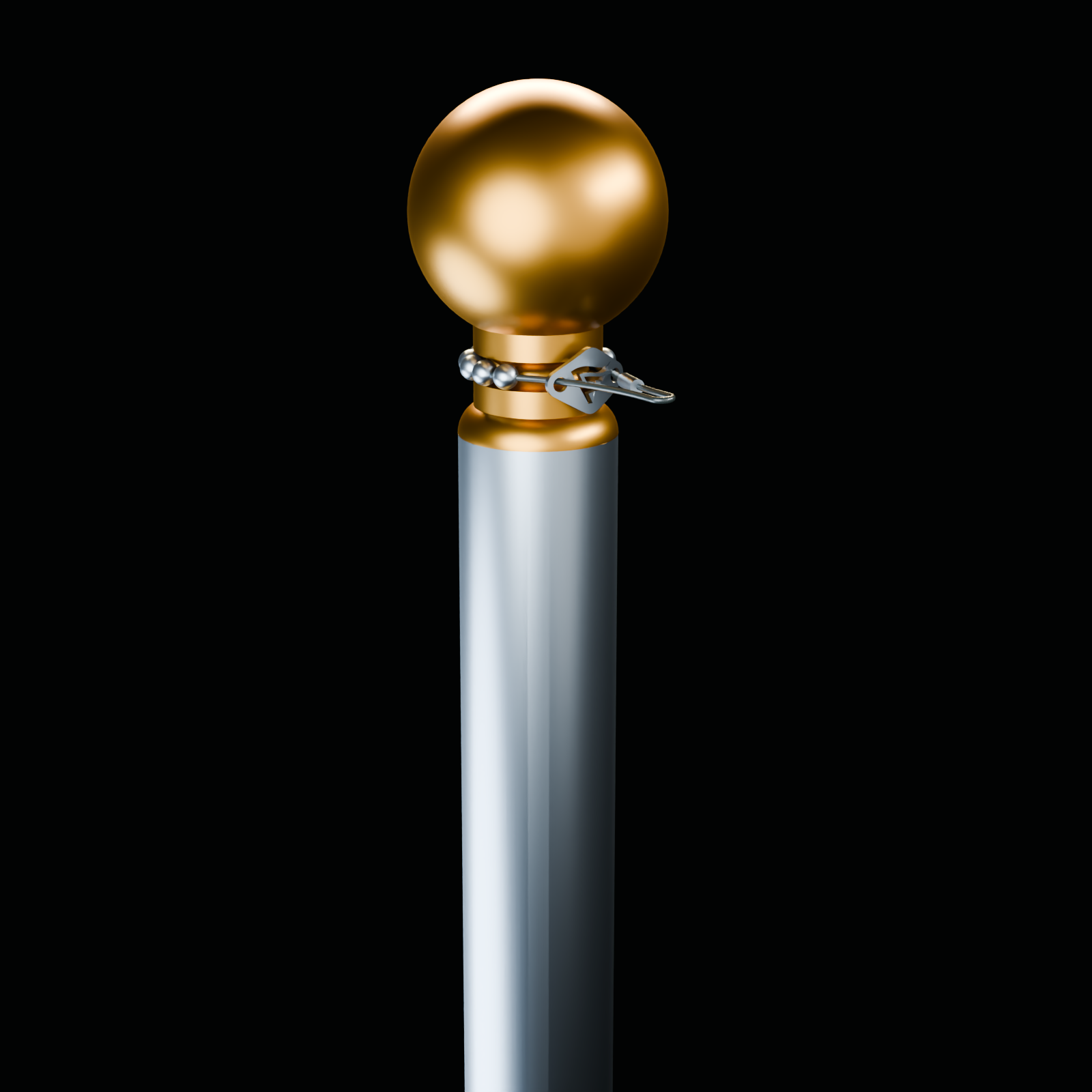

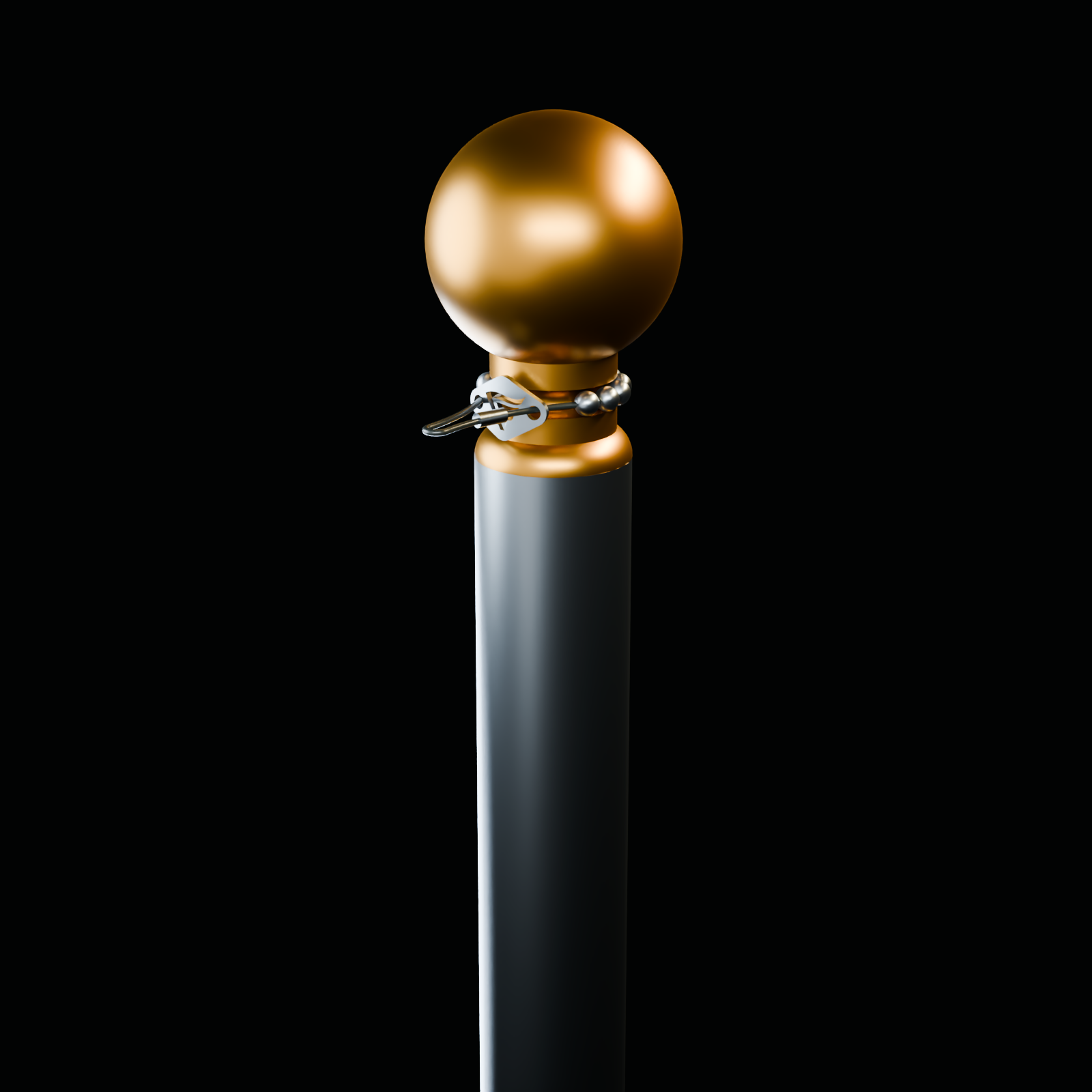

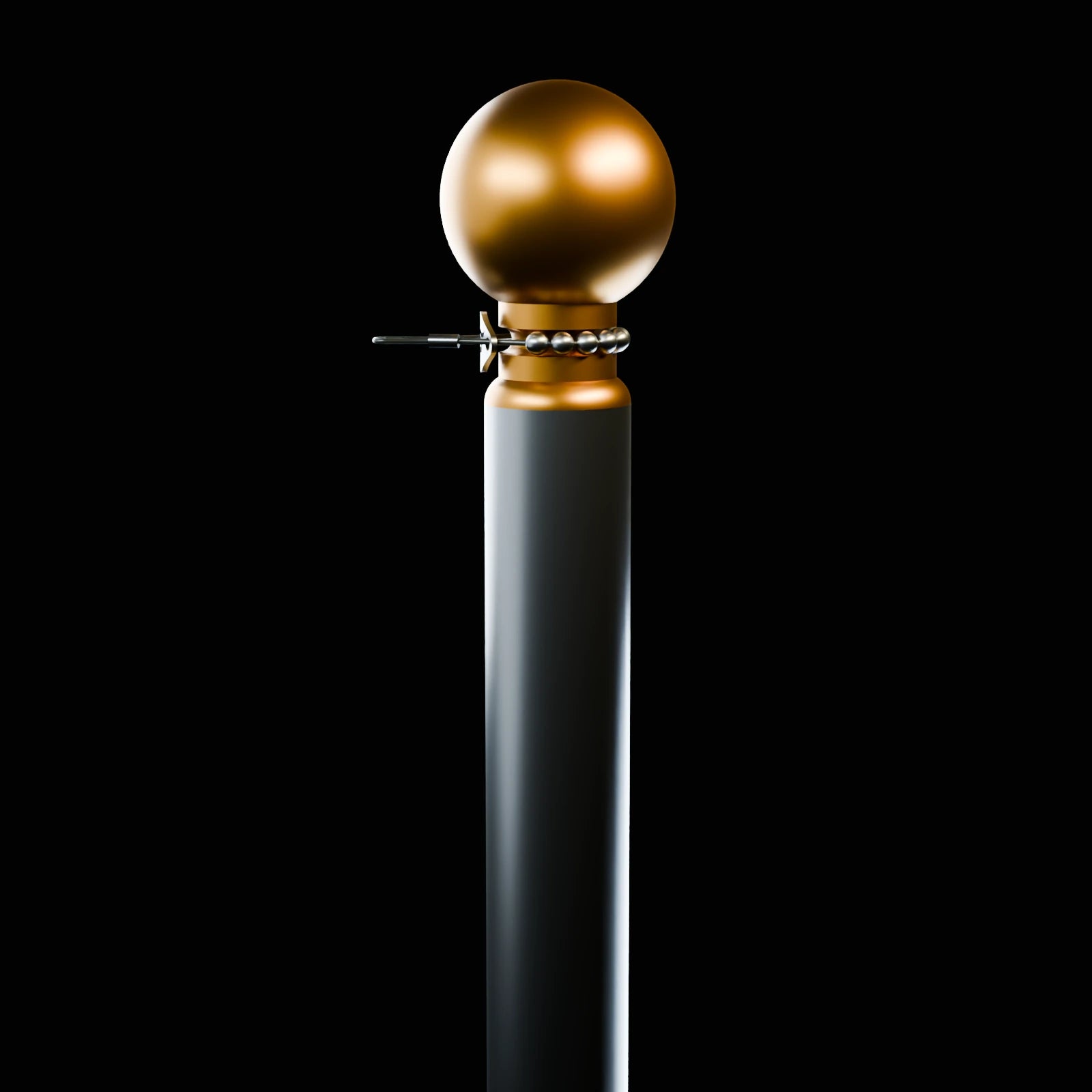

Brass up top. Cable bearings in motion.

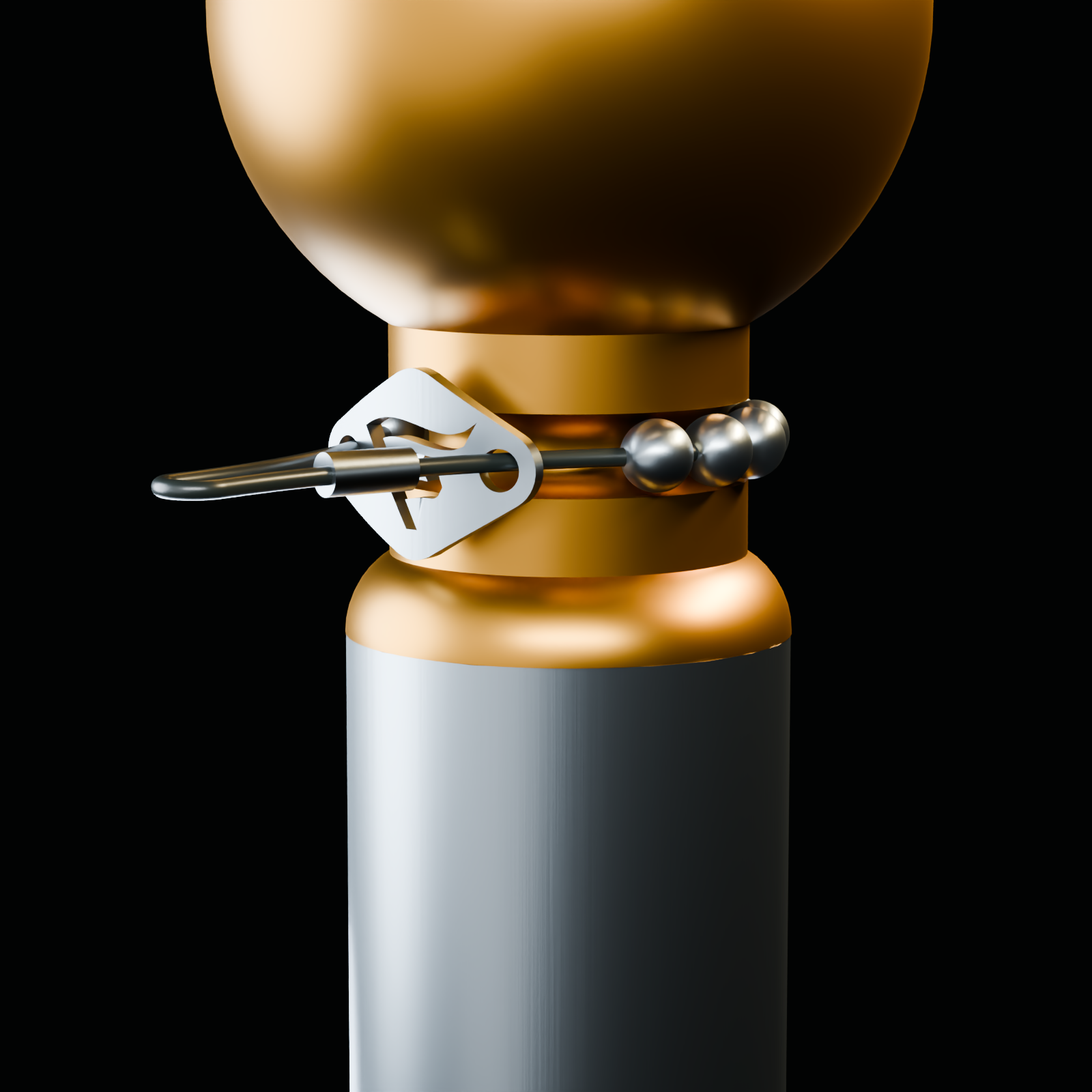

Inspect the governed top assembly before moving into the interactive product media. These controlled views preserve the deployed EXT geometry and its approved material presentation, including the brass finial body, black captured cable, and proprietary cable-bearing spinners.
INTERACTIVE PRODUCT MEDIA
ONE MOUNTING STANDARD / FOUR SYSTEM SCALES
Pick your reach.
Lightweight, travel-ready scale for quick portable setups.
The signature portable aluminum Gameday configuration.
Brushed stainless construction for a substantial, long-life setup.
The largest EXT format for maximum event and venue presence.
PATENTED DETAILS / SHARED MOUNTING SYSTEM
Built to travel. Designed to stay quiet.

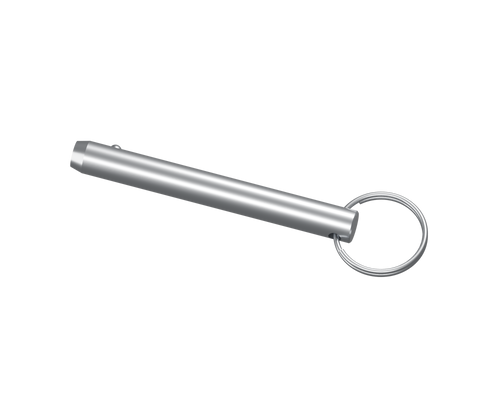

Every EXT scale steps from a 2-inch base to a 1-1/2-inch top and finishes with a solid polished brass ball finial and Gameday Cable Bearing Spinner. The double cross-bolted base enters compatible 2-inch Schedule 40 pipe mounts and secures with two clevis pins.
- Fixed surface mount plate
- Vehicle tire mount plate
- Vehicle 2-inch hitch mount
- No-mount configuration for an existing compatible receiver
BUILD YOUR EXT
Gameday Flags EXT Extending Flagpole
Select the pole scale and mounting configuration that fit your deployment. Pole and mount pricing update together before checkout.
Complete operating notes
The Gameday Flags Extending Flagpole is the coolest flagpole on the market. Its innovative extending pole design was developed in collaboration with RolyPulley webbing pulley systems. Our PATENTED system allows for easy extension of an extra large heavy duty American made flagpole that has NO CLANG because there’s no loose metal rigging.
All designs are 2” at the base stepping down to 1-1/2” at the top with a beautiful solid polished brass ball finial with an ALSO PATENTED Gameday Cable Bearing Spinner.
The 2” double cross bolted base mounting design allows for easy mounting into 2”SCH40 pipe mounts with the double clevis pin design.
The Gameday MINI EXT Flagpole is available in aluminum for a lightweight and travel ready version that extends from 8’ to 16’+.
The Gameday EXT Flagpole is available in aluminum for a lightweight and travel ready version that extends from 10’ to 22’+.
The Gameday SS EXT Flagpole is available in brushed stainless steel for a heavy duty, beautiful and long lasting version that extends from 12’ to 28’+.
The Gameday SSXL EXT Flagpole is available in brushed stainless steel for a heavy duty, beautiful and long lasting version that extends from 14’ to 34’+.
All Gameday EXT Flagpoles fit into the same sturdy stainless steel mounts alowing a variety of mounting options for a pole that is fun and easy to take down and bring with you, setting it up securely onto your vehicle or another permanent mount setup.
It features an internal halyard flagpole with 3 sections that extend by pulling the webbing strap and with an integrated cleat allowing for safe and easy operation.
To lower the flagpole, simply push the button on the cleat, releasing the cam, and guiding the strap with your other hand. The flagpole also has a second strap inside that is attached to the top pull, helping to fully retract the pole, overcoming the friction in the RolyPulley webbing system.
When the flagpole is retracted it is manageable with one strong individual or any 2 people, to pull the pole from the mount and have a place to remove the flag and rest it when not in use or needing to transport. The ideal situation is actually to transfer the flagpole directly from mount to mount so that it’s always safe, simply lower, swap, and hoist back up.
$400.00
Pole and selected mount
The selected mount is added as its own cart line so the adder remains visible through checkout. Mount compatibility and handling are reviewed before release.
MVP | EXT / CHOOSE THE RIGHT SCALE
One quiet flagpole family. Two very different jobs.
MVP keeps the setup compact and close. EXT carries the same silent-display mindset into larger portable event and venue deployments.
COMPACT SHAFT / APPROX. HALF THE EXT DIAMETER

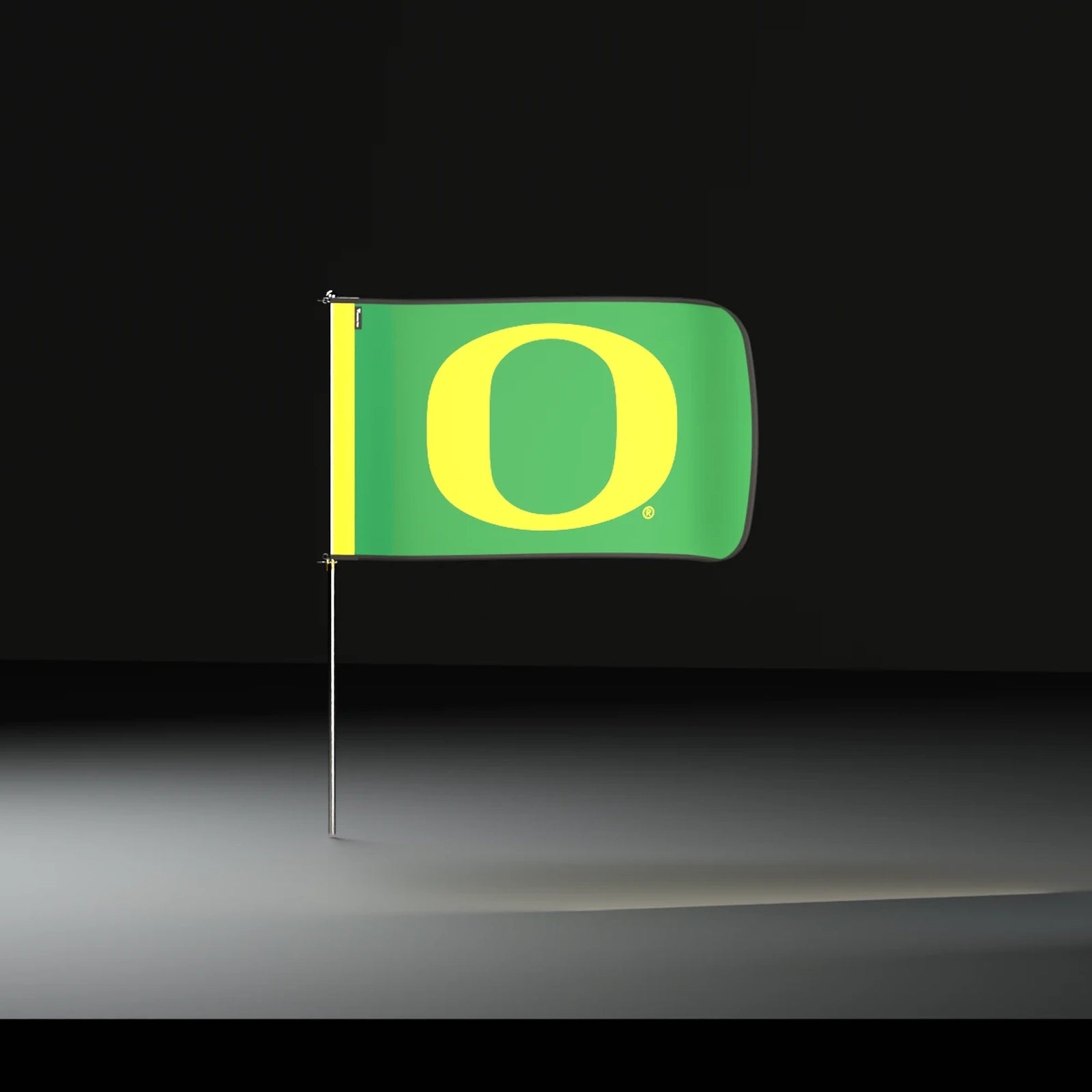

Gameday Flags MVP Flagpole 3 to 6' Long
Compact / telescoping / travel-ready
- Approved flags
- 2.5 × 4-foot and 3 × 5-foot flags only. Larger flags route to EXT.
- Reach
- A 3-to-6-foot telescoping display pole sized for close-range flag presentation.
- Operation
- Manual telescoping adjustment with precision-machined interfaces and a knurled brass adjustment knob.
- Mounting
- Tool-free screw-on base with an optional adjustable-angle wall or surface mount.
- Carry profile
- A little over 36 inches including the ball when assembled, with a black Ottertex canvas carry bag and webbing strap.
Best fit
Travel, patios, vehicle-side setups, compact events, and close-range flag display.

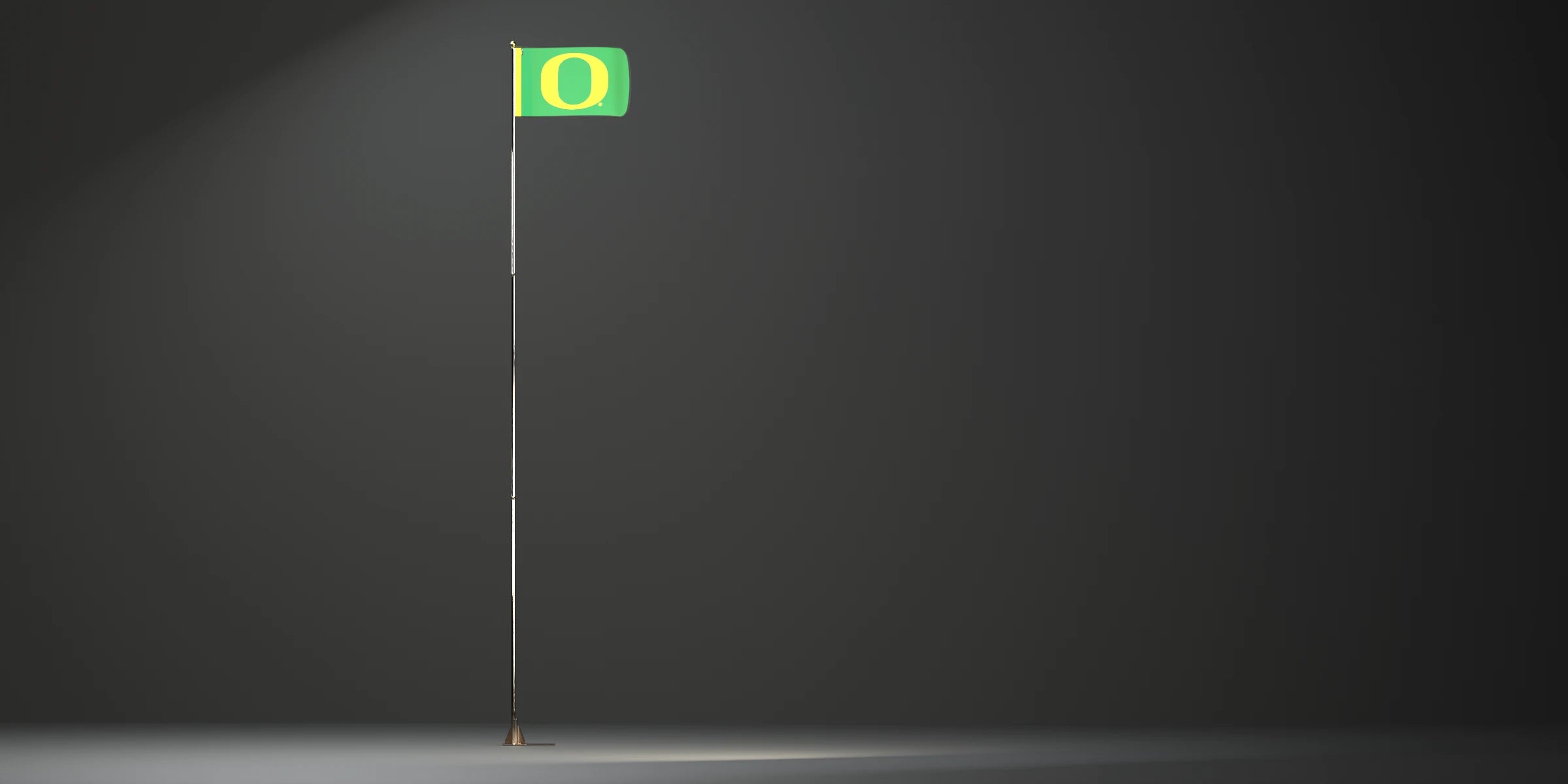

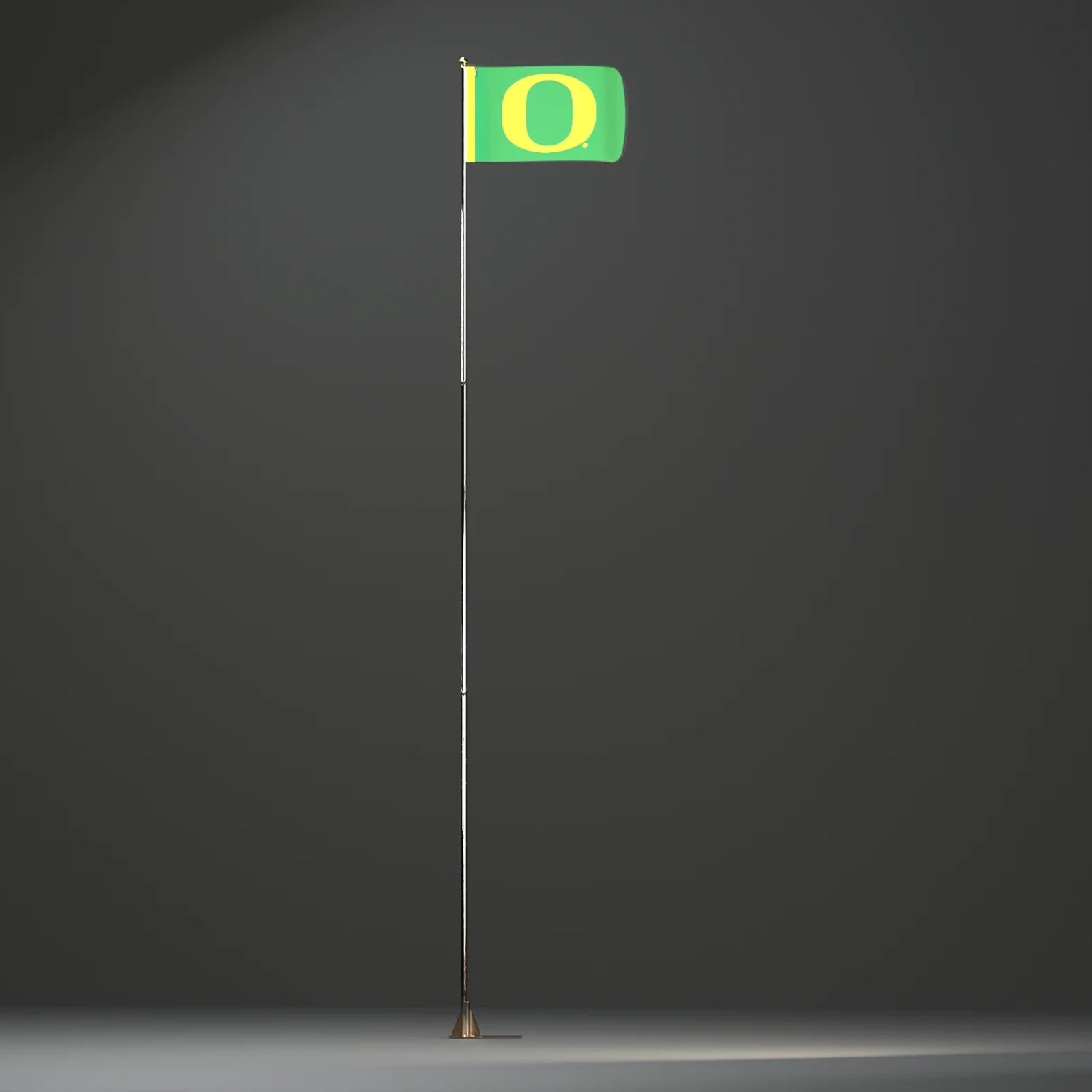

LARGE-FORMAT DEPLOYED SETUP / APPROVED STUDIO
Gameday Flags EXT Extending Flagpole
Large-format / three-stage / portable
- Approved flags
- 3 × 5-foot, 4 × 6-foot, 5 × 8-foot, and larger project-specific flag programs.
- Reach
- Choose from four aluminum or stainless size ranges, from 8–16+ feet through 14–34+ feet.
- Operation
- A patented internal webbing system raises three nested sections; an integrated cleat controls the selected height.
- Mounting
- A double cross-bolted 2-inch base fits compatible Schedule 40 pipe mounts and secures with two clevis pins.
- Carry profile
- Built to move between compatible mounts, with the carry and handling changing with the pole size you choose.
Best fit
Tailgates, event marketing, venues, large portable displays, and vehicle-supported installations.
