WC-160 / Marking

Laser Engraving

Place identifiers, artwork, and controlled marks through a released operation with proof, position, and appearance attached.

Route an engraving project ↗

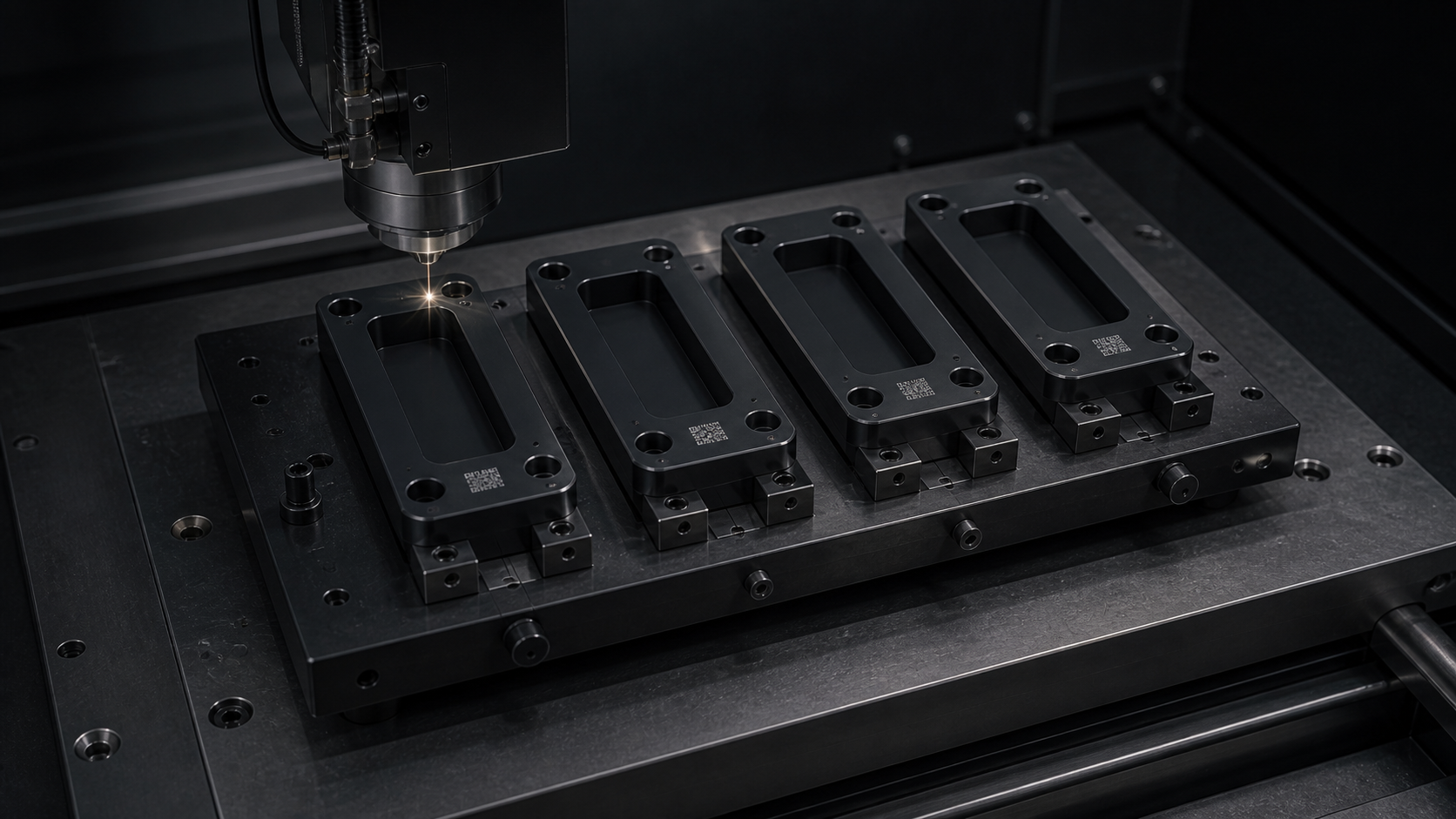

Identical black brackets laser marked in a precise production fixture
EXOCNC PROCESS VISUALIZATION / FIRST LIVE REDLINE
Work centerWC-160
OperationLaser engraving / permanent marking
Routing modeSample approval / first article / repeat production
Commercial modeQuoted independently per reviewed project

Every project is reviewed and quoted independently.

MARKING ROUTE

Approve the mark before it reaches the part.

The work center keeps content, position, material response, proof, and production acceptance together.

  1. 01Review the mark

    Confirm approved artwork, text, identifier, material, location, orientation, quantity, and appearance expectation.

  2. 02Release the proof

    Keep the approved content, scale, placement, and part orientation attached to the operation.

  3. 03Engrave the parts

    Complete the released laser-marking scope for the approved lot.

  4. 04Check + hand off

    Verify content, placement, and appearance before release to assembly, finish, inspection, or shipment.

WORK-CENTER RECORD

The fields production will need later.

Typical input
Approved artwork or text / part / material / placement / quantity
Released output
Engraved parts / appearance check / next-route identification
Required handoff
Finish / assembly / inspection / shipment
Schedule unit
Estimated and scheduled per approved proof and lot
Quality gate
Content, placement, orientation, and approved appearance checked per project
Capability boundary
Material response, mark size, contrast, depth, artwork, fixture, quantity, price, and lead time are confirmed during review.
