WC-230 / Joining

MIG Welding

Route reviewed MIG joints through a clear fit-up, welding, cleanup, and production handoff.

Route a MIG project ↗

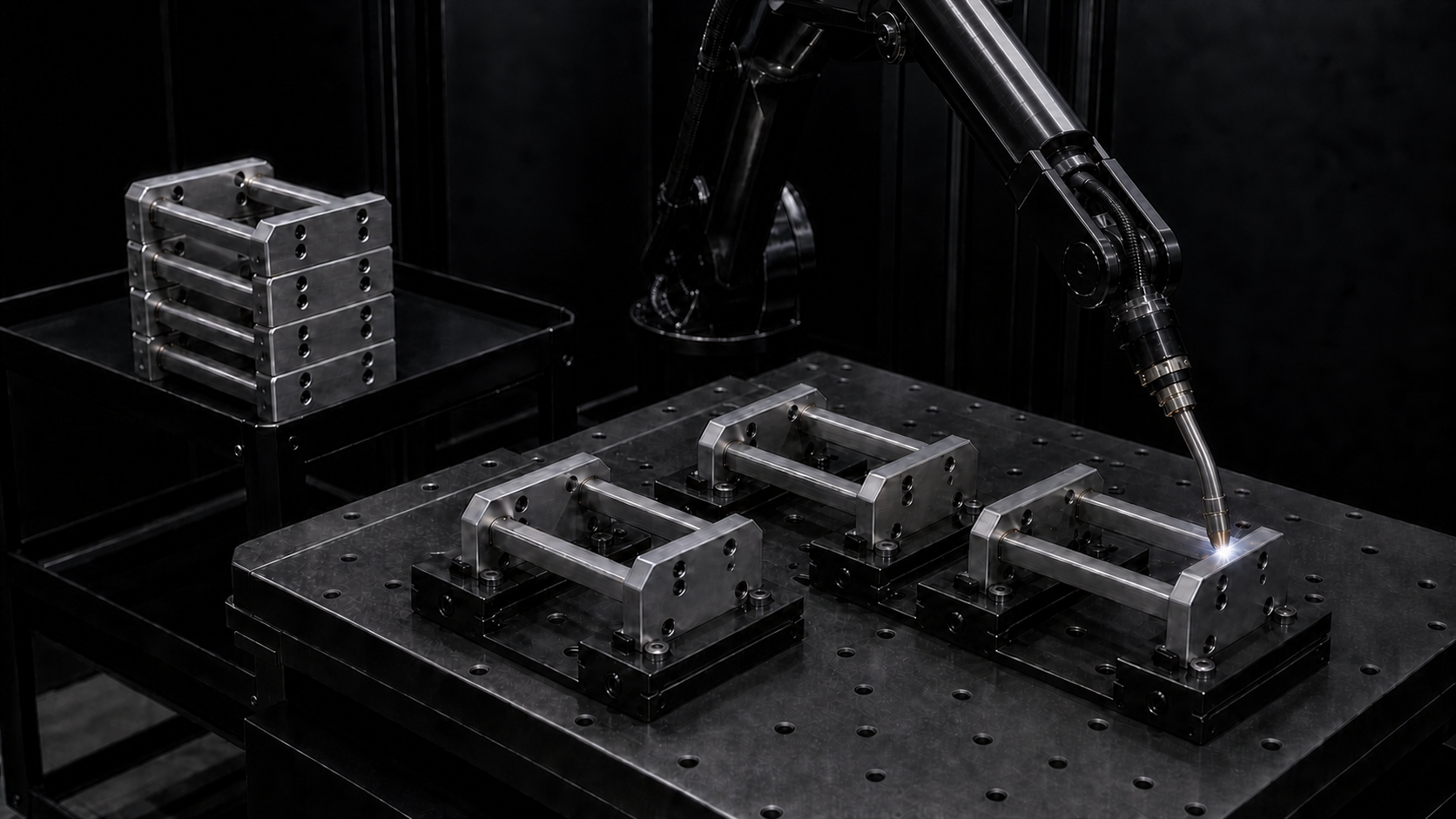

Identical steel frames MIG welded in repeatable production fixtures
EXOCNC PROCESS VISUALIZATION / FIRST LIVE REDLINE
Work centerWC-230
OperationMIG welding / production joining
Routing modePrototype / first article / repeat production
Commercial modeQuoted independently after material and joint review

Every project is reviewed and quoted independently.

MIG ROUTE

Fit, join, check, and keep moving.

The work center makes fit-up, sequence, acceptance, cleanup, and the next operation visible.

  1. 01Review the joint

    Confirm material, joint geometry, fit-up, quantity, cleanup, and acceptance requirements.

  2. 02Release fit-up + sequence

    Keep part location, support, access, weld sequence, and distortion control attached to the operation.

  3. 03Complete the MIG weld

    Run the released welding scope for the approved setup and lot.

  4. 04Check + hand off

    Verify the required weld condition and release the assembly to cleanup, finish, inspection, or assembly.

WORK-CENTER RECORD

The fields production will need later.

Typical input
Approved parts / material / joint / fit-up / quantity
Released output
MIG-welded assembly / weld check / next-route identification
Required handoff
Cleanup / finish / inspection / assembly
Schedule unit
Estimated and scheduled per reviewed setup and lot
Quality gate
Weld condition confirmed by the method released for the project
Capability boundary
Material, thickness, joint design, wire, fixture, distortion, weld acceptance, quantity, price, and lead time are confirmed during review.
