WC-240 / Forming

Press Brake Forming

Hold the flat pattern, material, tooling, bend sequence, and formed-part check together as one released operation.

Route a forming project ↗

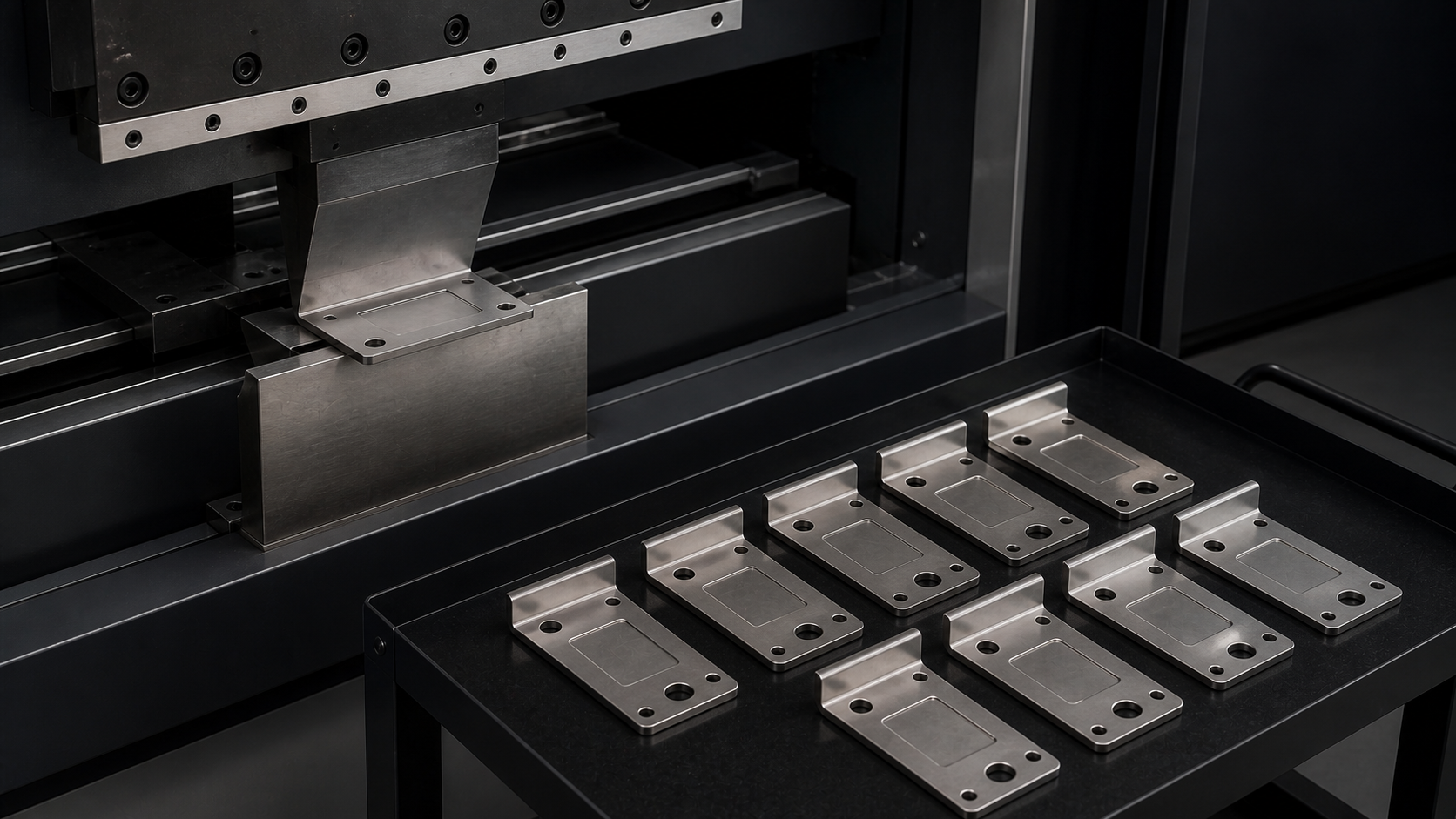

Identical stainless brackets formed to the same angle on a press brake
EXOCNC PROCESS VISUALIZATION / FIRST LIVE REDLINE
Work centerWC-240
OperationPress brake bending / sheet-metal forming
Routing modePrototype / first article / repeat production
Commercial modeQuoted independently per reviewed project

Every project is reviewed and quoted independently.

FORMING ROUTE

Make every bend part of the released route.

The work center keeps bend intent, tooling, sequence, formed geometry, and downstream fit visible.

  1. 01Review the bend

    Confirm released flat pattern, material, thickness, bend direction, radius, sequence, quantity, and downstream fit.

  2. 02Release tooling + sequence

    Keep datum, tooling, bend order, grain direction, and critical formed features attached to the operation.

  3. 03Form the parts

    Complete the released press-brake scope for the approved setup and lot.

  4. 04Check + hand off

    Verify the required formed geometry and release parts to joining, finish, assembly, or inspection.

WORK-CENTER RECORD

The fields production will need later.

Typical input
Released flat pattern / material / thickness / bend requirements / quantity
Released output
Formed parts / operation check / next-route identification
Required handoff
Joining / finish / assembly / inspection
Schedule unit
Estimated and scheduled per reviewed setup and lot
Quality gate
Critical formed geometry checked per drawing or approved sample
Capability boundary
Material, thickness, bend length, tooling, radius, angle, tolerance, grain direction, quantity, price, and lead time are confirmed during review.
