WC-140 / Cutting

Router Cutting

Route sheet and panel work through a clear cutting setup with approved material, geometry, edge needs, and handoff.

Route a router project ↗

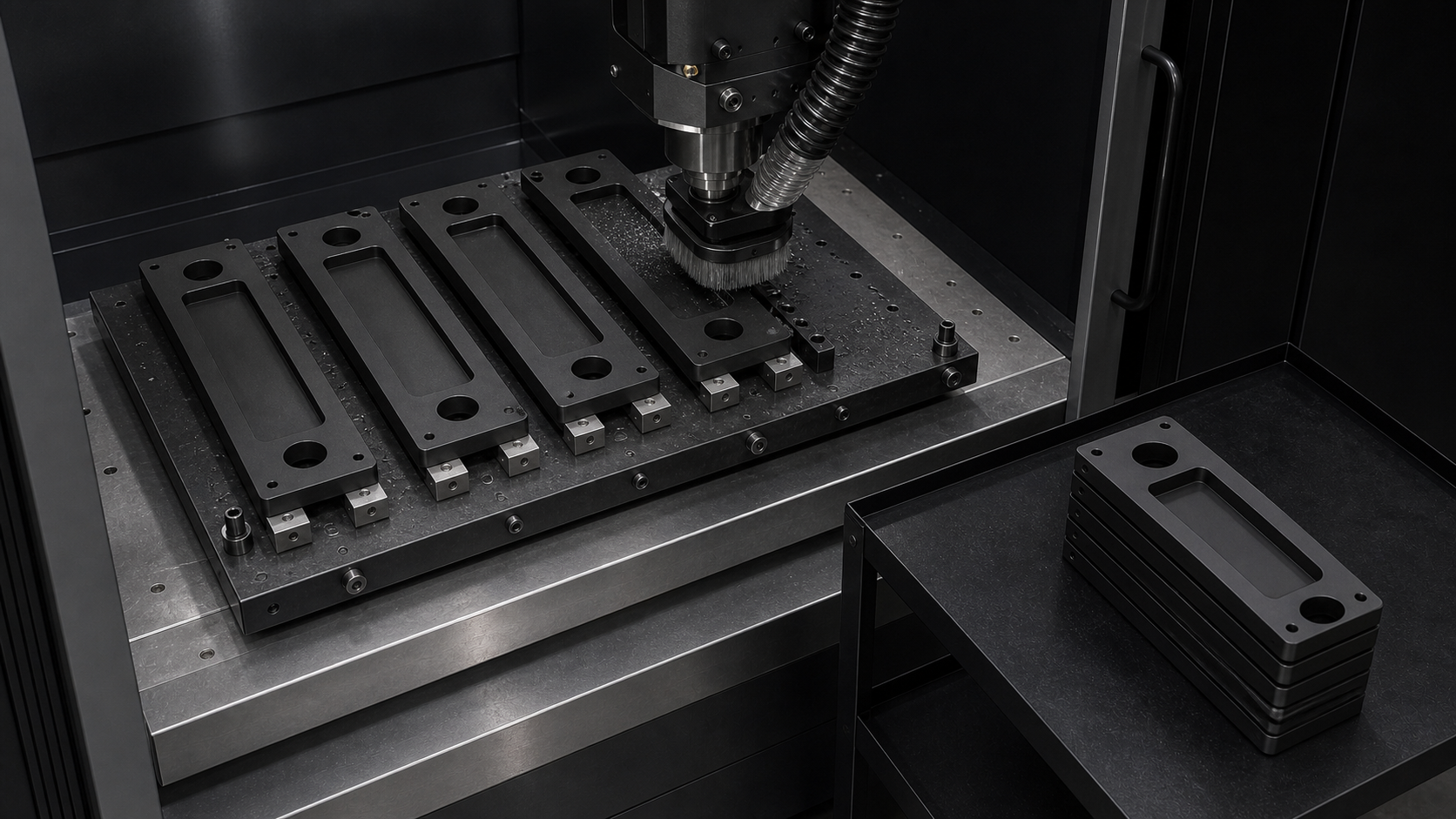

Identical black panels routed and stacked in a controlled CNC cell
EXOCNC PROCESS VISUALIZATION / FIRST LIVE REDLINE
Work centerWC-140
OperationCNC router cutting / sheet and panel profiling
Routing modePrototype / first article / repeat production
Commercial modeQuoted independently per reviewed project

Every project is reviewed and quoted independently.

ROUTER ROUTE

Keep the panel, setup, and finished edge connected.

A separate work center makes stock orientation, workholding, tools, and the next assembly step visible.

  1. 01Review the panel

    Confirm geometry, material, thickness, face orientation, edge needs, quantity, and downstream assembly.

  2. 02Release the setup

    Keep workholding, tool access, stock orientation, nesting, and datum intent attached to the route.

  3. 03Route the parts

    Complete the reviewed router-cutting scope for the released setup and lot.

  4. 04Check + hand off

    Verify the required profiles and release parts to cleanup, finish, assembly, or inspection.

WORK-CENTER RECORD

The fields production will need later.

Typical input
Released geometry / material / thickness / face orientation / quantity
Released output
Routed parts / operation check / next-route identification
Required handoff
Cleanup / finish / assembly / inspection
Schedule unit
Estimated and scheduled per reviewed setup and lot
Quality gate
Released profile and critical features checked per project
Capability boundary
Material, thickness, sheet size, tooling, hold-down, tolerance, edge condition, quantity, price, and lead time are confirmed during review.
