WC-220 / Joining

TIG Welding

Keep the reviewed joint, fit-up, fixture, weld sequence, finish, and inspection handoff in one operation.

Route a TIG project ↗

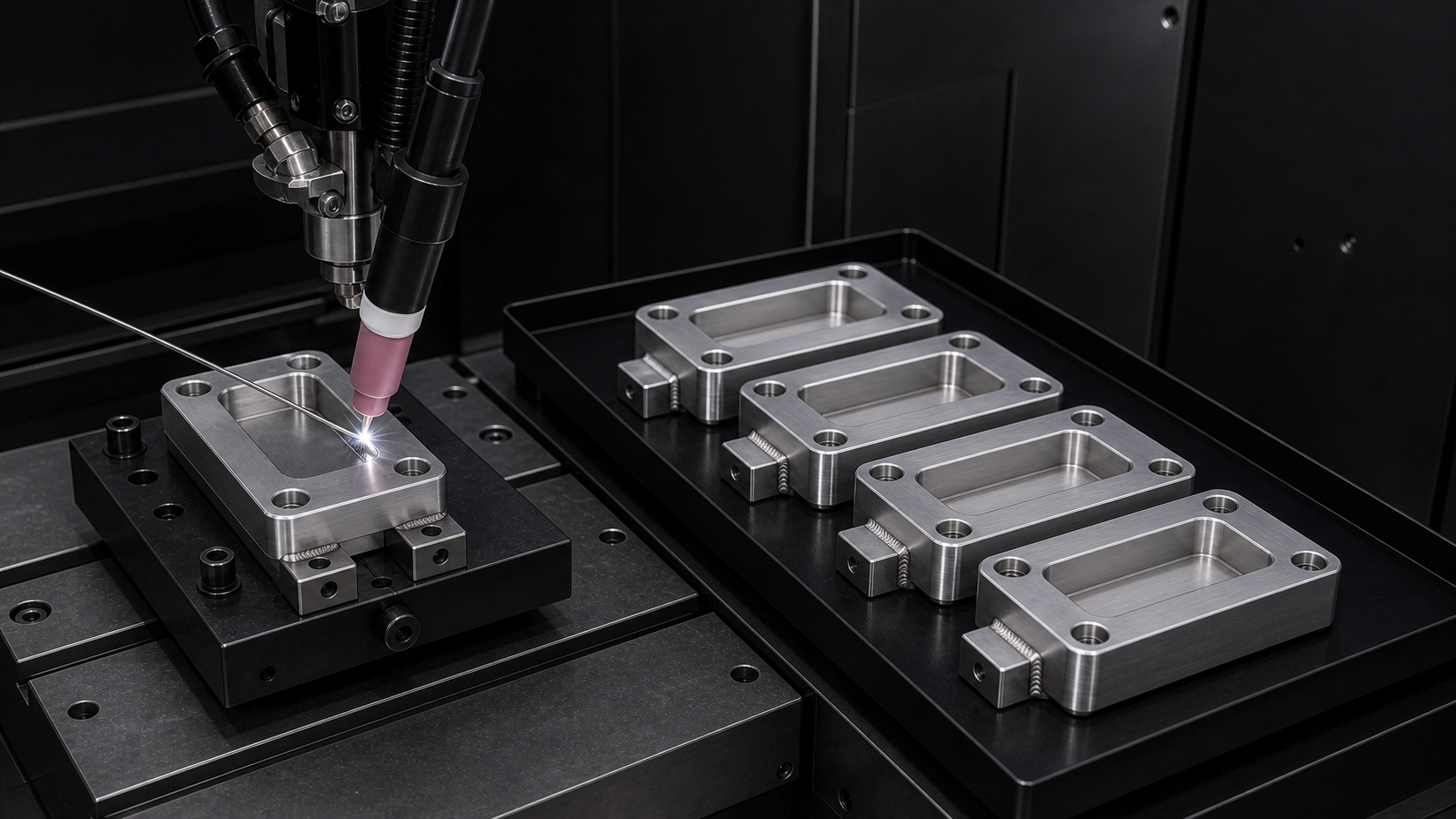

Identical stainless bracket assemblies TIG welded with a controlled filler wire
EXOCNC PROCESS VISUALIZATION / FIRST LIVE REDLINE
Work centerWC-220
OperationTIG welding / controlled manual joining
Routing modeFirst article / prototype / repeat production
Commercial modeQuoted independently after material and joint review

Every project is reviewed and quoted independently.

TIG ROUTE

A reviewed joint with a controlled handoff.

The operation stays separate from cutting, machining, finish, and assembly while preserving the full joint context.

  1. 01Review the joint

    Confirm material, joint geometry, fit-up, quantity, finish, and acceptance requirements.

  2. 02Release fit-up + fixture

    Keep part location, support, access, weld sequence, and distortion control attached to the operation.

  3. 03Complete the TIG weld

    Run the released welding scope for the approved first article or recurring lot.

  4. 04Check + hand off

    Verify the required weld condition and release the assembly to cleanup, finish, inspection, or assembly.

WORK-CENTER RECORD

The fields production will need later.

Typical input
Approved parts / material / joint / fit-up / quantity
Released output
TIG-welded assembly / weld check / next-route identification
Required handoff
Cleanup / finish / inspection / assembly
Schedule unit
Estimated and scheduled per reviewed joint and lot
Quality gate
Weld condition confirmed by the method released for the project
Capability boundary
Material, thickness, joint design, filler, fixture, distortion, weld acceptance, quantity, price, and lead time are confirmed during review.
