WC-310 / Tooling

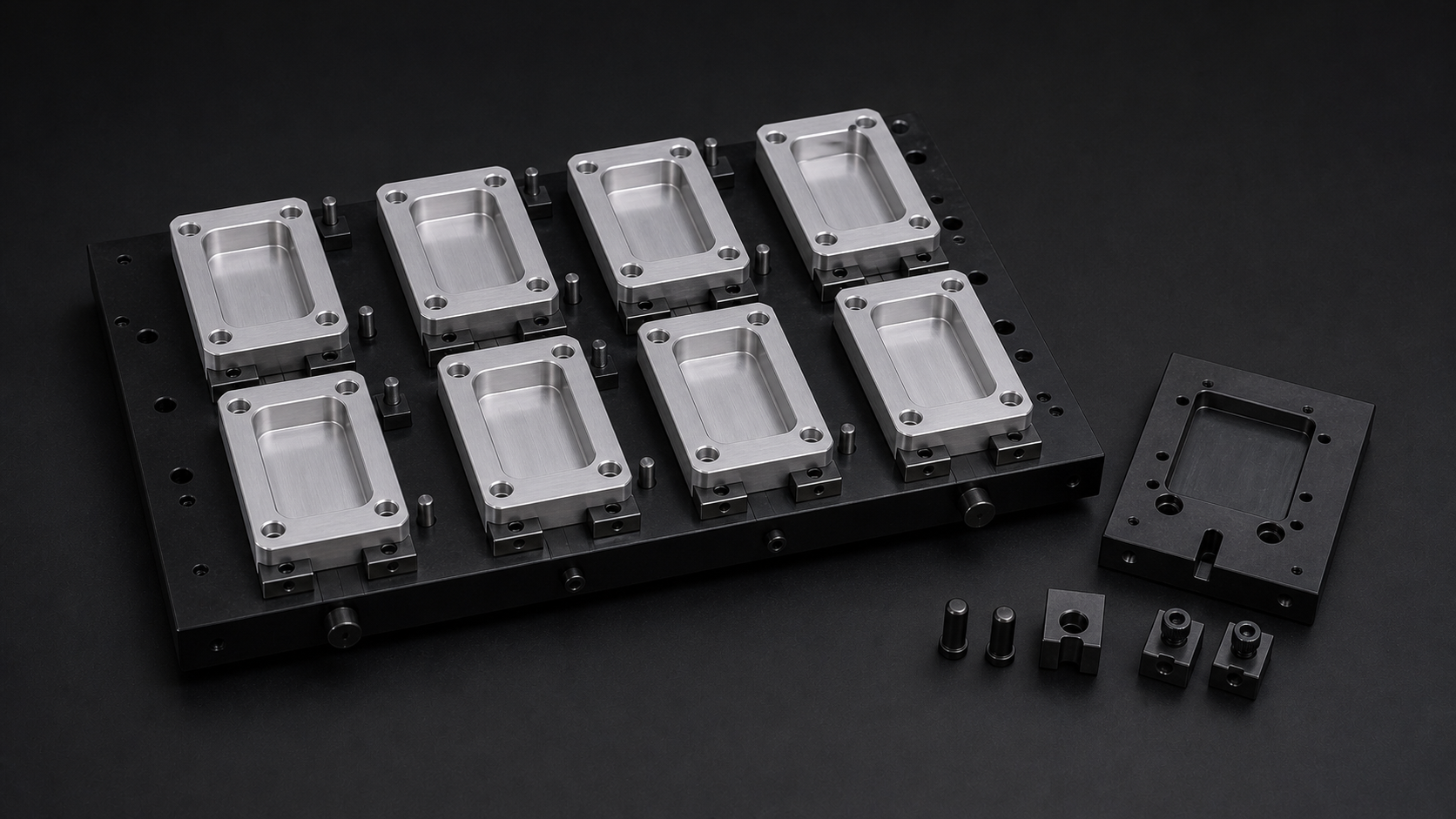

Fixtures + Workholding
Give the part a repeatable place to land—and preserve the setup as a real production asset instead of tribal knowledge.
Work centerWC-310
OperationProduction tooling / part location / process aids
Routing modePrototype tooling / bridge tooling / repeat-production tooling
Commercial modeQuote per tooling and process scope
Every project is reviewed and quoted independently.
TOOLING ROUTE
Make the setup worth repeating.
The fixture is treated as its own released manufacturing deliverable, ready to support an operation, an operator, and future production.
- 01Define the operation
Start with the part, target work center, datum intent, access, quantity, and the problem the fixture needs to remove.
- 02Develop the hold
Organize location, clamping, support, loading, tool access, and operator interaction around the released process.
- 03Prove the setup
Check that the fixture supports the intended operation and preserves the required part and tool access.
- 04Release the tooling
Keep the fixture record, setup definition, and target work center connected for repeat use and revision.
WORK-CENTER RECORD
The fields production will need later.
- Typical input
- Part geometry / target operation / datum intent / access / quantity
- Released output
- Released fixture or process aid / setup definition
- Required handoff
- Target manufacturing work center / operator setup
- Schedule unit
- Estimated and scheduled per tooling scope and proof plan
- Quality gate
- Fixture function and target setup confirmed per released scope
- Capability boundary
- Tooling geometry, materials, target equipment, clamps, automation, proof method, price, and lead time are confirmed during review; no unstated suitability is implied.
