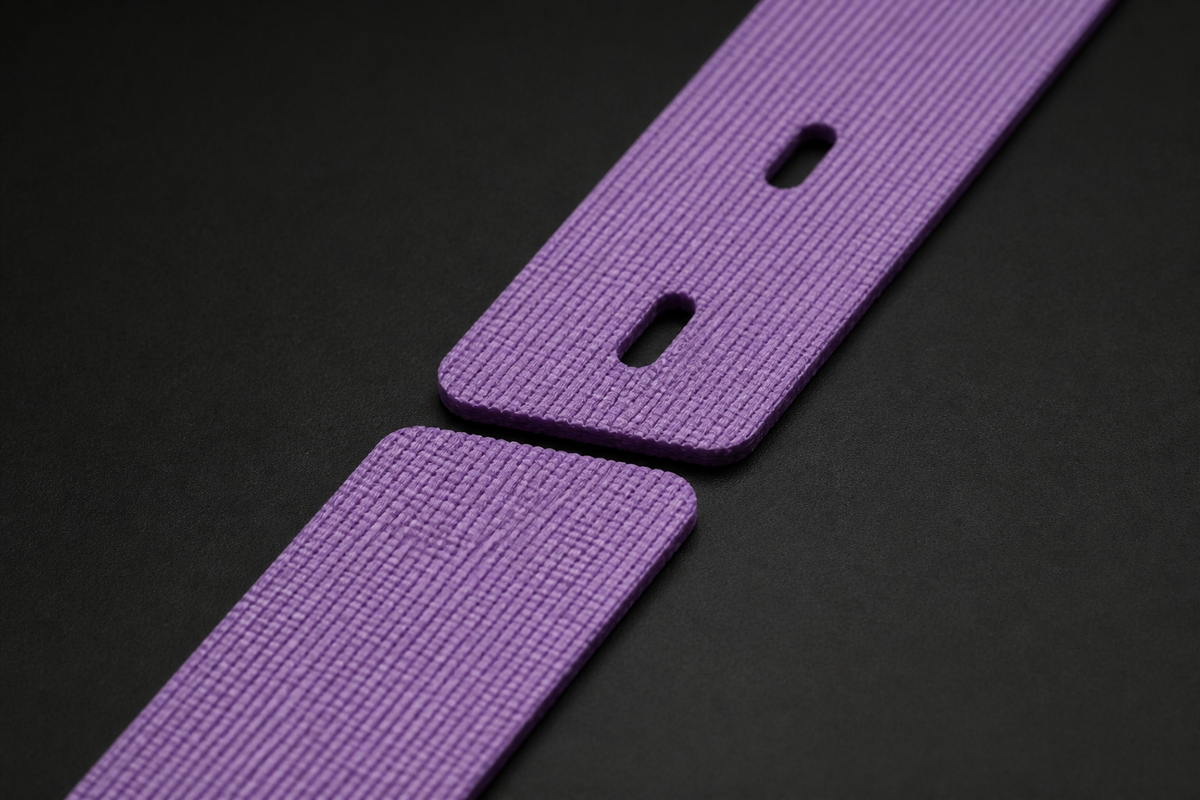

LaserWeb close-up in RolyPulley purple showing woven texture and laser-cut connection slots
LaserWeb close-up in RolyPulley purple showing woven texture and laser-cut connection slots

ROLYPULLEY / CUT-TO-LENGTH FLAT WEBBING

LASERWEB

Order one continuous strap in your chosen width and length. Add laser-cut slots to either end when you want a clean bolt-on connection—no sewing required.

01 / FORMAT

Choose your strap.

Pick the width, length, and whether either end needs slots. The preview updates as you go.

Nominal webbing width
Choose the same width as your pulley and buckle hardware.
End A slots
Add slots only when End A needs a bolt-on connection.
End B slots
Add slots only when End B needs a bolt-on connection.
02 / FORMAT PREVIEW

See the whole strap.

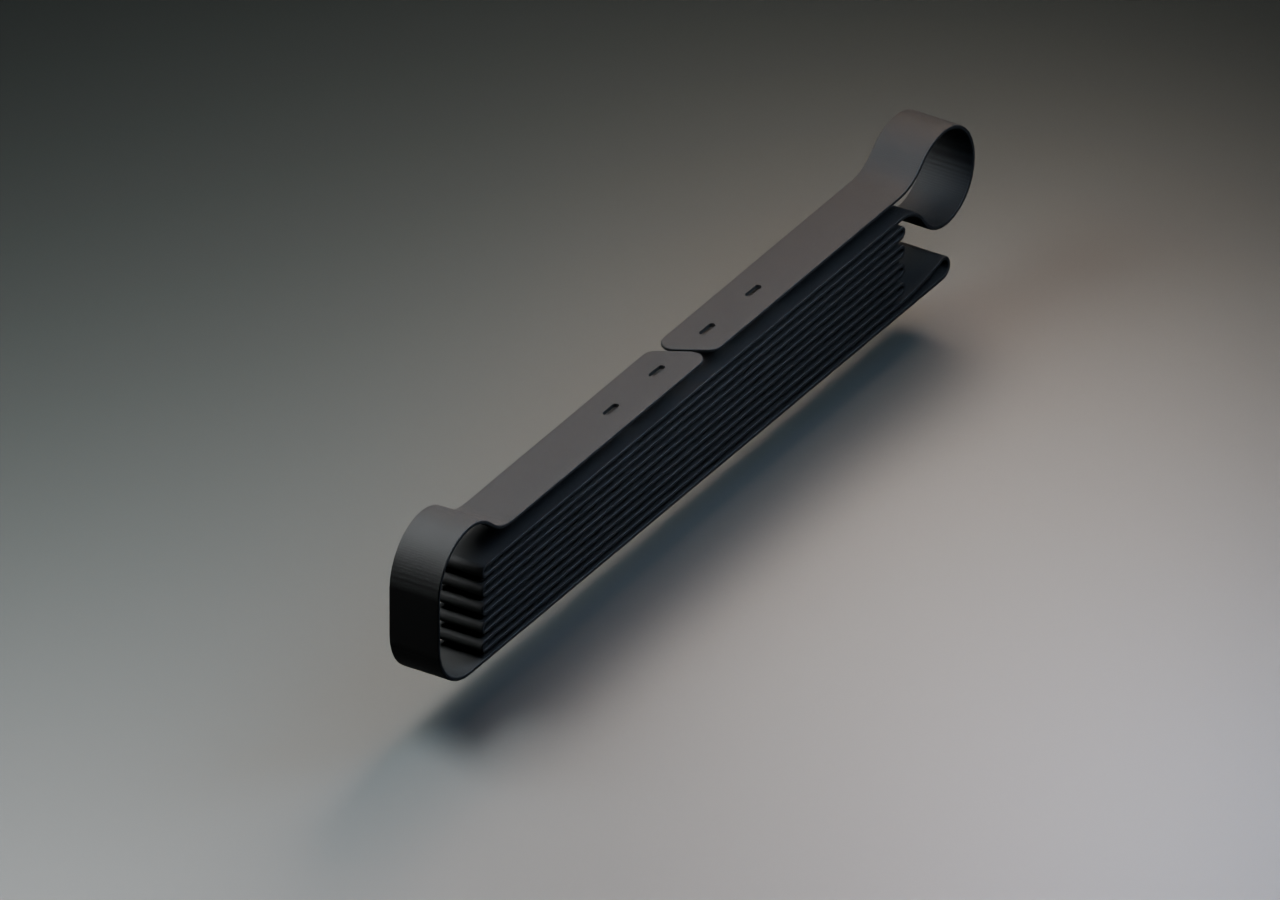

Connected LaserWeb source presentation DRAG TO VIEW THE STRAP

Loading the interactive strap preview.

1.00 IN WIDE × .0625 IN THICK / END TREATMENT PREVIEW WIDTH + LENGTH + SLOT STATE UPDATE LIVE
Your strap 1.00 in / 4 ft (48 in) / End A: No slots / End B: No slots

Both ends retain the same 60 degree trim and 1/4-inch corner radii. Only the centered slot pair changes.

YOUR STRAP CONFIGURATION

Keep every choice with the strap.

Your cart records the width, cut length, and slot choice for each end. The price is based on total linear feet, while the item remains one continuous strap.

Current configuration

1.00 in / 4 ft (48 in) / no-slot End A / no-slot End B Black woven webbing / .0625 in thick / 1 continuous strap / cart quantity prices linear footage.
$1.00 PER LINEAR FOOT One cart quantity equals one linear foot. A 6 ft strap is added as quantity 6 with its own end-detail record.

NO-SEW / BOLT-ON MOUNTING

Turn the end of the strap into a mounting point.

Choose the centered slot pair, place a WebWasher over the LaserWeb end, and select the fastener for what is behind it. The strap stays flat, removable, and easy to rebuild without a sewn loop.

01 / ACCESS TO BOTH SIDES

Through-bolt the connection.

Use a 1/4-20 flat-head bolt and a matching nut when the back of the mounting point is accessible. The WebWasher holds the slotted strap end flat while the receiving hardware closes the stack.

  1. 011/4-20 FH BOLTSelected length and finish
  2. 02WEBWASHERWebbing-specific bearing face
  3. 03LASERWEB ENDCentered laser-cut slot pair
  4. 04MOUNTING INTERFACEPulley, panel, rail fitting, or other compatible point
  5. 05WASHER + 1/4-20 NUTMatched rear-side retention

Choose this path for: RolyPulley mounting points, accessible MOLLE panel openings, strut fittings, and other compatible 1/4-20 through-holes.

02 / ONE-SIDED ACCESS

Screw directly to the structure.

Use the EXOHDW Multi-Material Screw when the receiving material is approved for the screw and a rear nut is not practical. The screw passes through the controlled WebWasher interface; it does not replace it.

  1. 01MULTI-MATERIAL SCREWLength chosen for the complete stack and embedment
  2. 02WEBWASHERLocates and supports the strap end
  3. 03LASERWEB ENDCentered laser-cut slot pair
  4. 04RECEIVING MATERIALVerified pilot hole, edge distance, engagement, and torque

Choose this path for: compatible structure and substrates where the selected screw specification and installation are appropriate.

RP
RolyPulleys

Bolt a slotted LaserWeb end into the pulley system and keep the connection serviceable.

MO
MOLLE panels

Use an accessible opening and the complete through-bolt stack to add a flat strap tie point.

XS
Strut rails

Meet a compatible 1/4-20 channel nut or fitting without adding a sewn termination.

MM
Direct to structure

Use the Multi-Material Screw path when one-sided access and the receiving material support it.

Connection boundary: WebWasher controls the webbing interface; it does not create a standalone load rating. Final suitability depends on the strap, fastener, receiving hardware or material, embedment, edge distance, torque, installation, environment, and intended use.

FLAT WEBBING / ROUND ROPE

Why choose a flat strap instead of round rope?

01

Broad and low-profile.

Flat webbing lies across a wider face than round rope and fits close to surfaces, gear, and mounting hardware.

02

Easy to see and manage.

The strap's orientation stays visible, making twists easy to spot and the broad tail easy to grip and coil.

03

Made to work with hardware.

Flat webbing pairs naturally with RolyPulley rollers, CAM buckles, WebWashers, and clean bolt-on ends.
