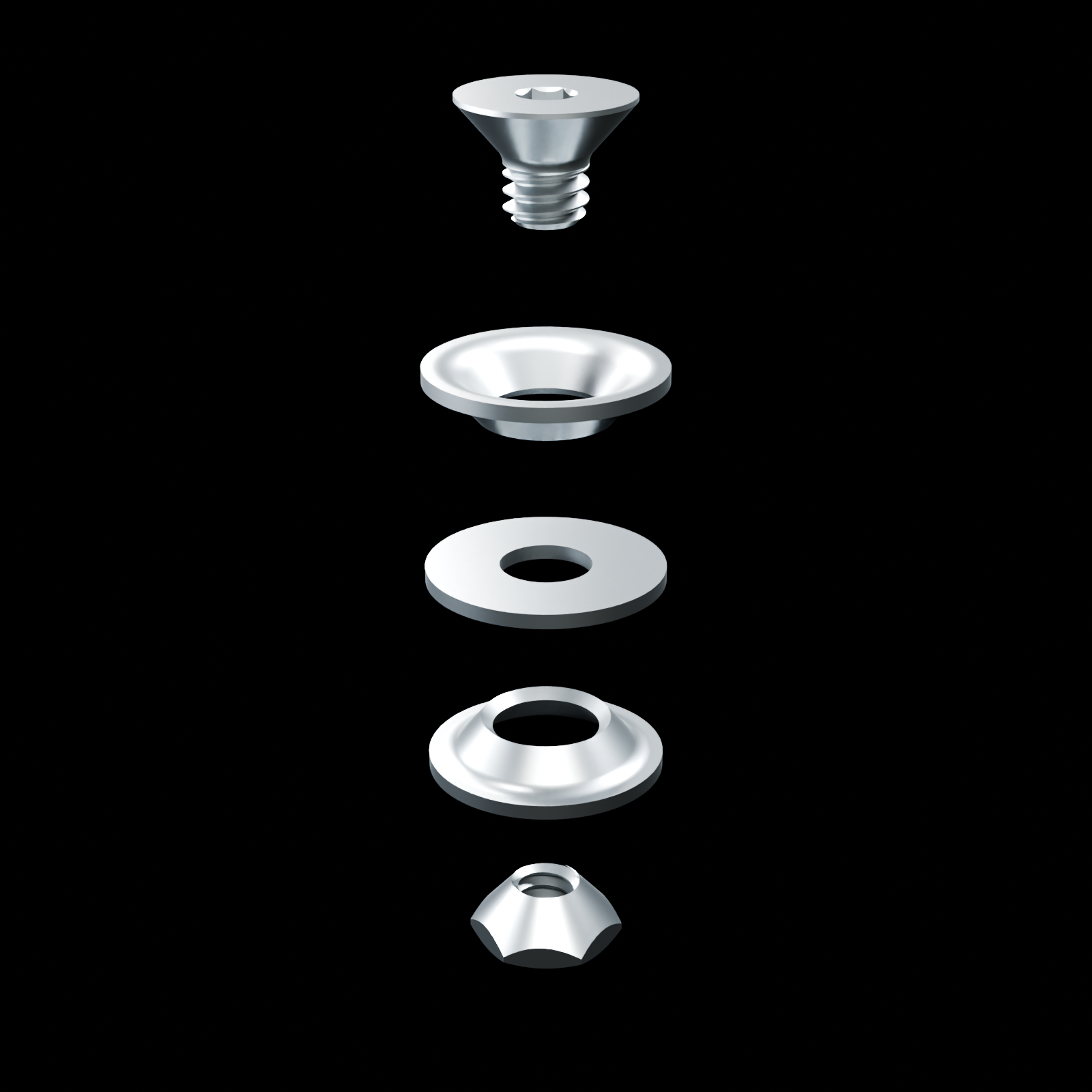

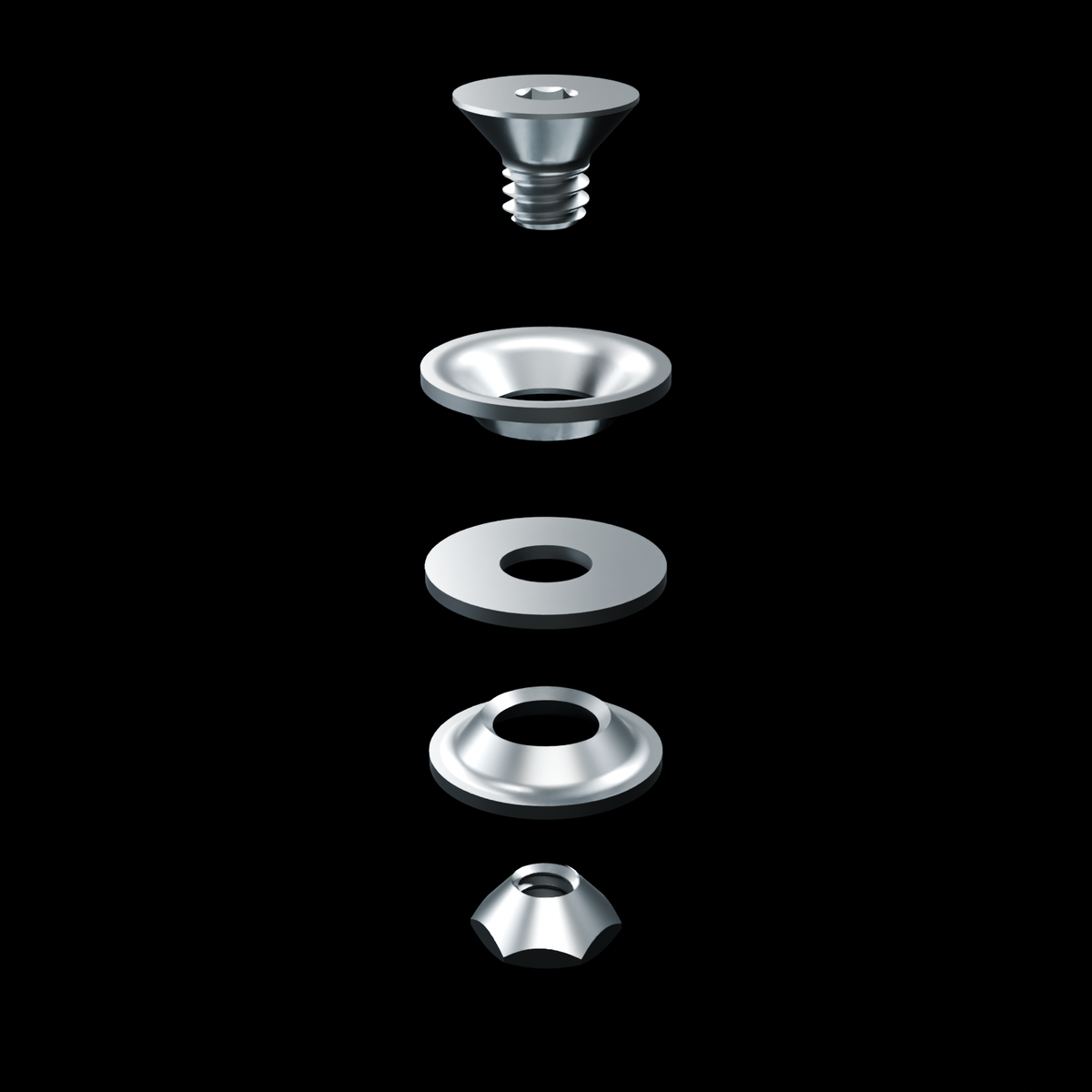

RolyPulley Swivel Kit - Raw stainless - one-kit exploded hardware stack - R02 finish-controlled
RolyPulley Swivel Kit - Raw stainless - one-kit exploded hardware stack - R02 finish-controlled
RolyPulley Swivel Kit - Raw stainless - one-kit exploded hardware stack - R02 finish-controlled

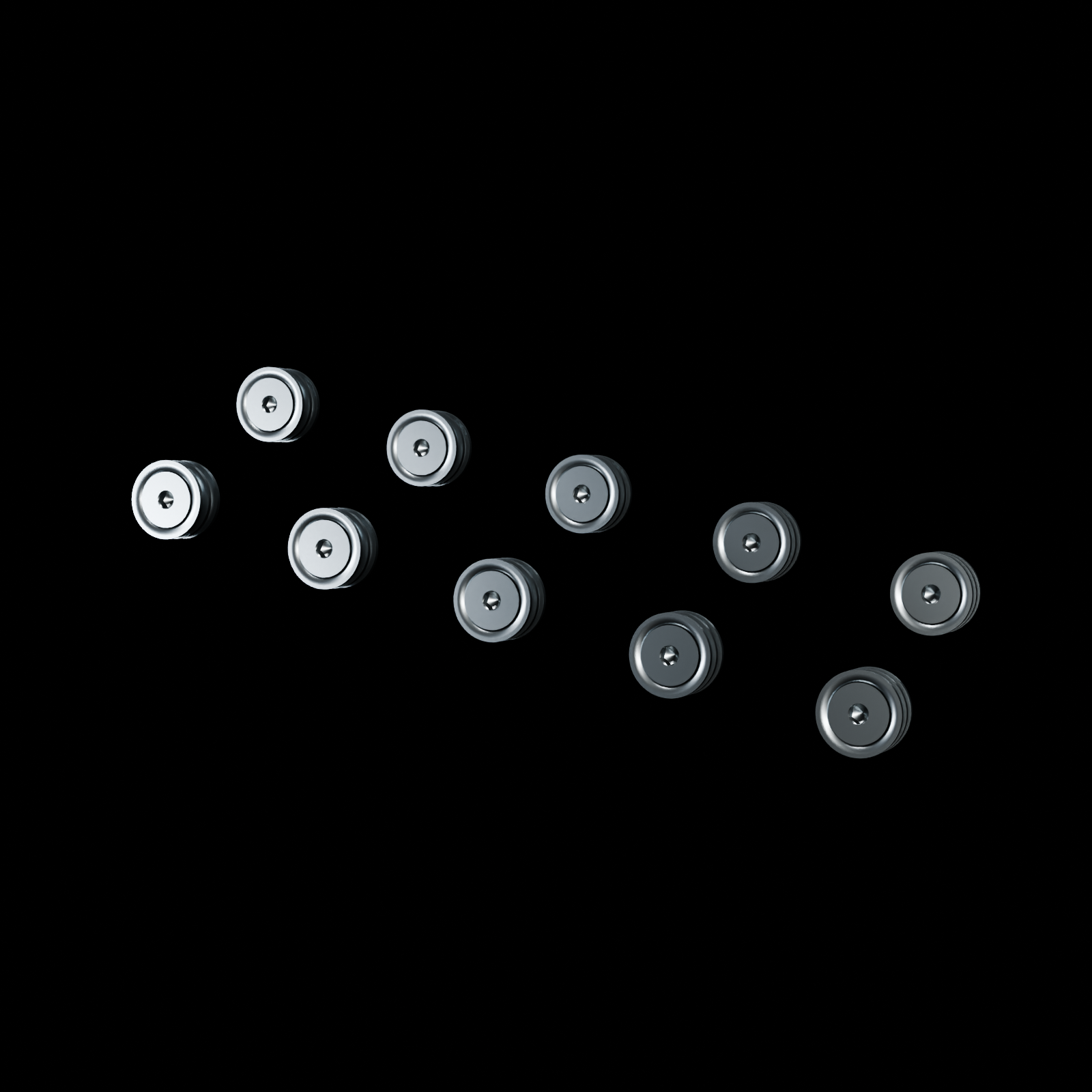

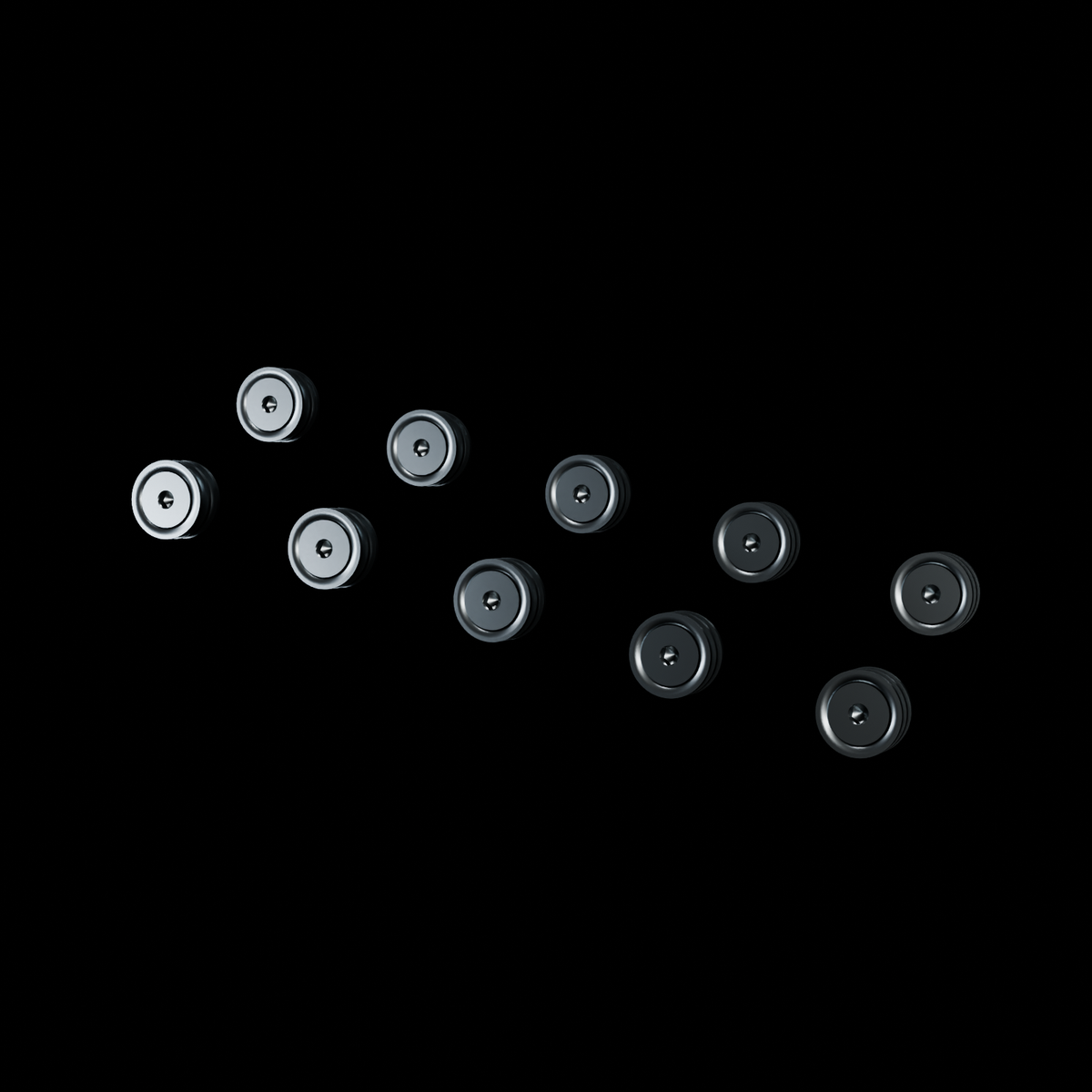

RolyPulley Swivel Kit - Raw stainless - ten complete hardware stacks - R02 finish-controlled

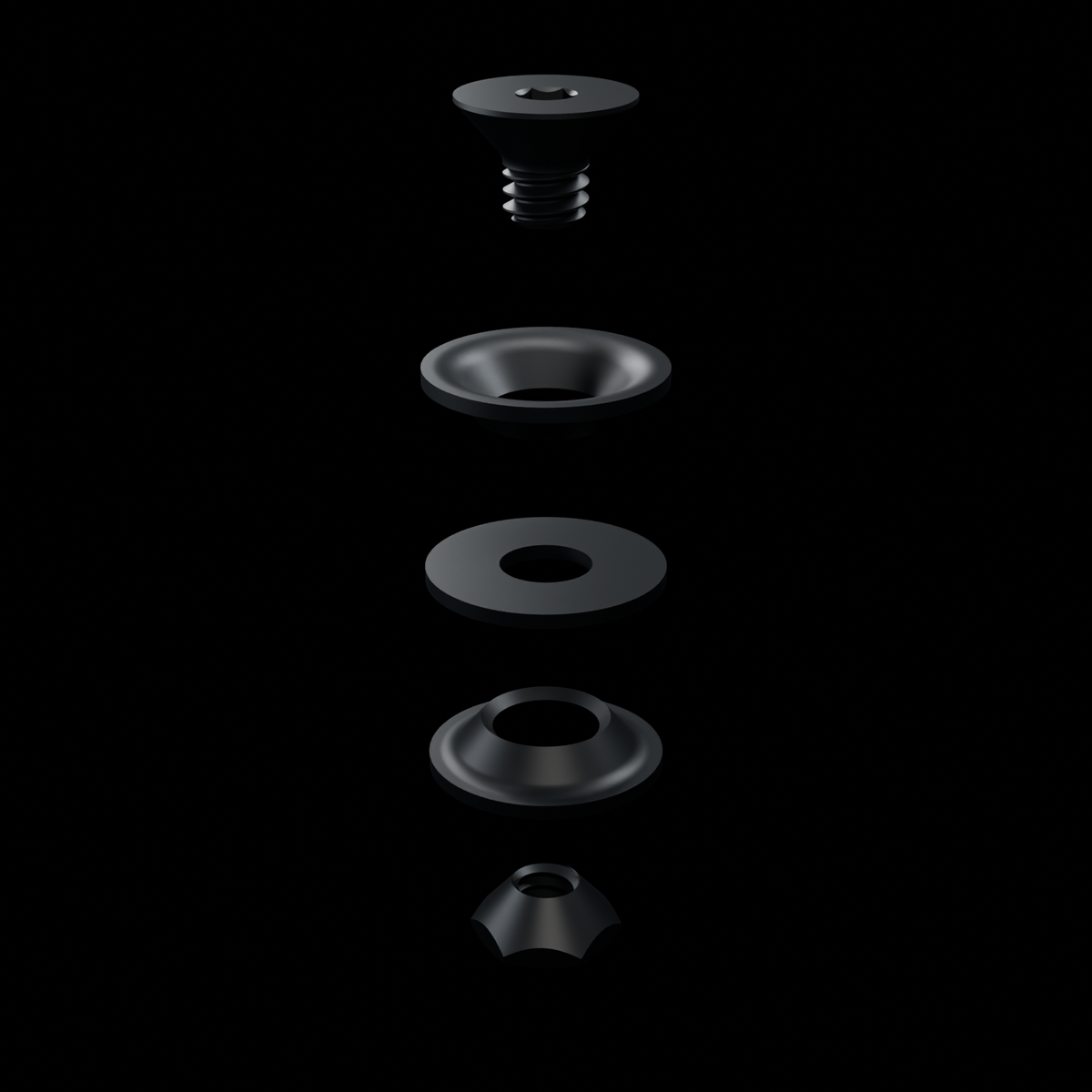

RolyPulley Swivel Kit - Black oxide - one-kit exploded hardware stack - R02 finish-controlled

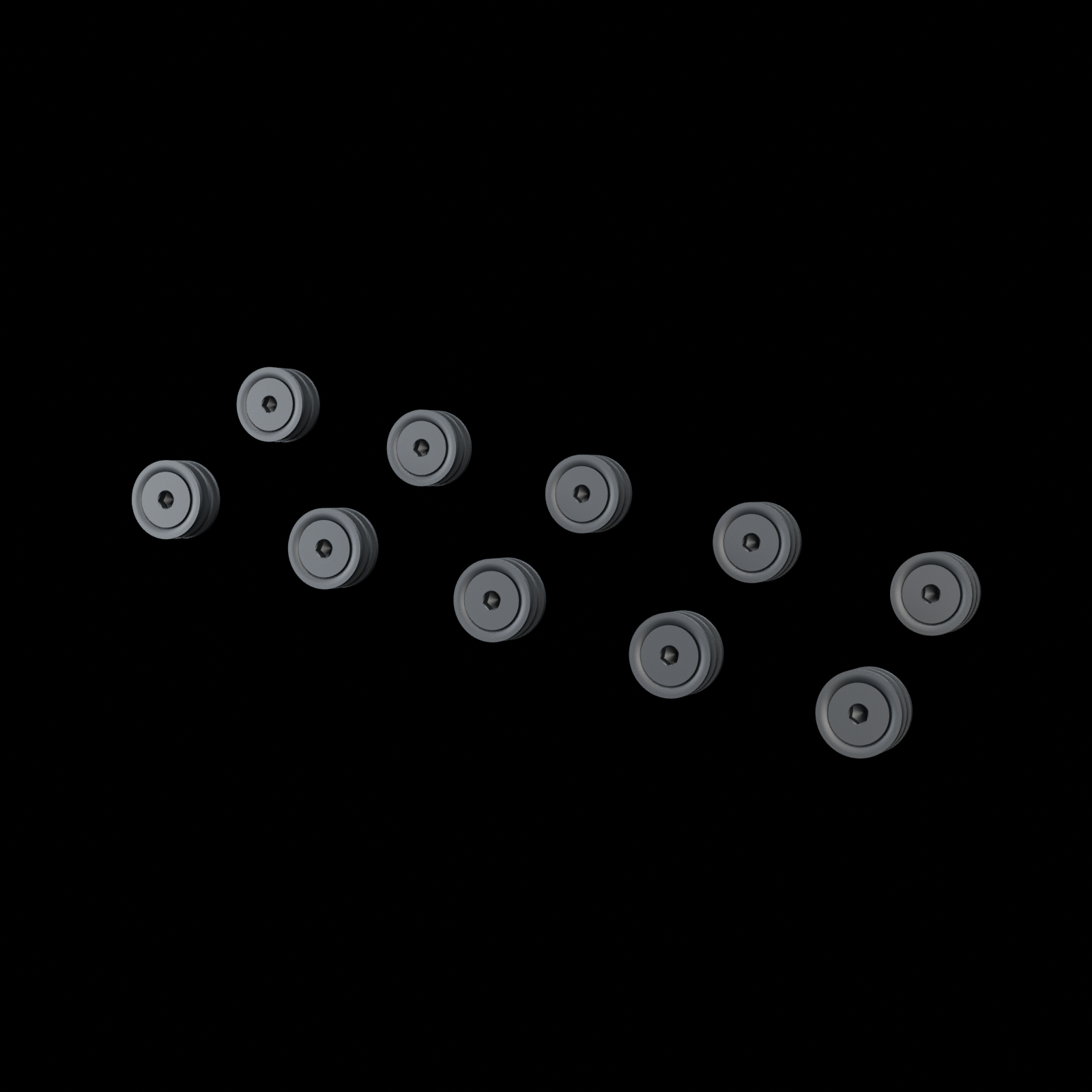

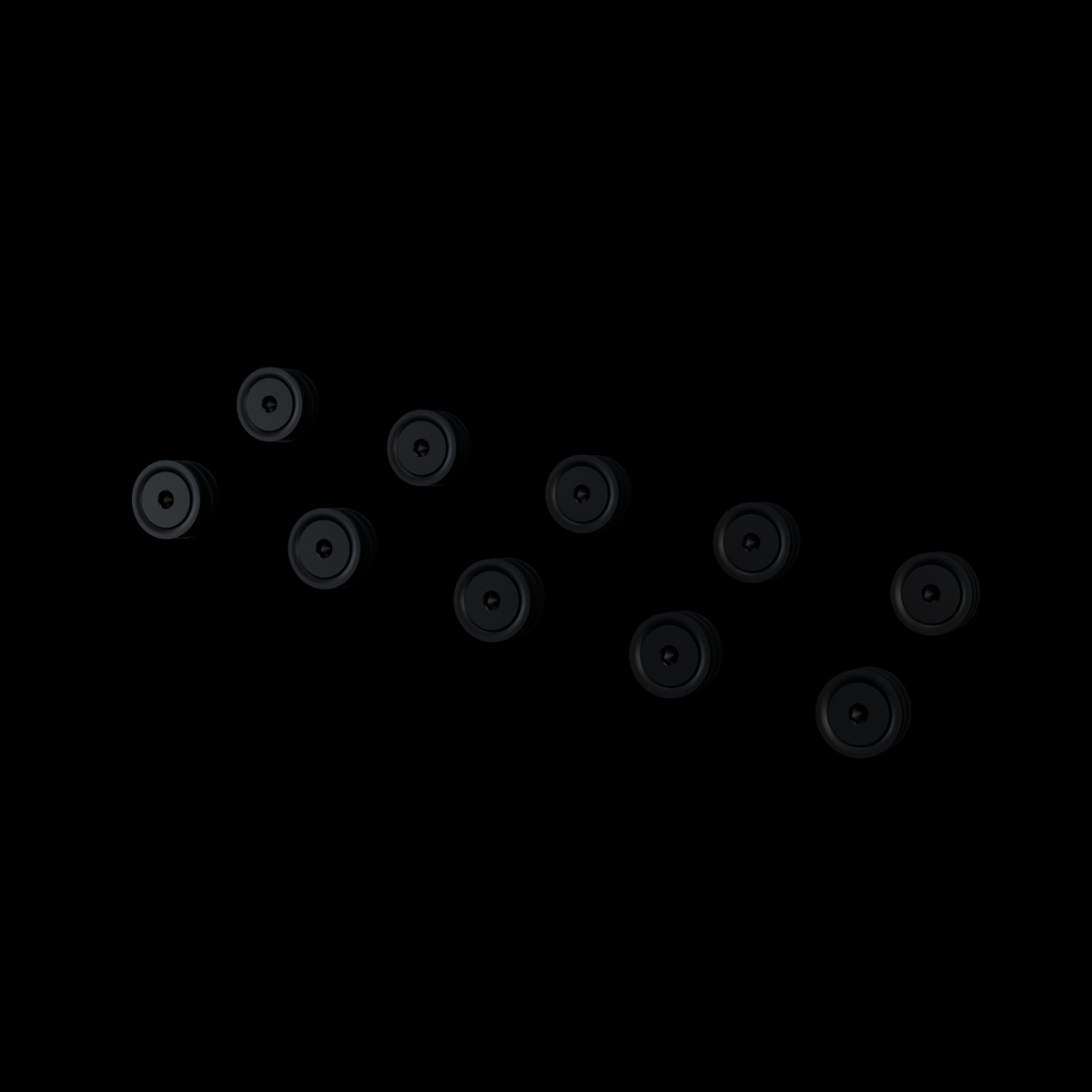

RolyPulley Swivel Kit - Black oxide - ten complete hardware stacks - R02 finish-controlled

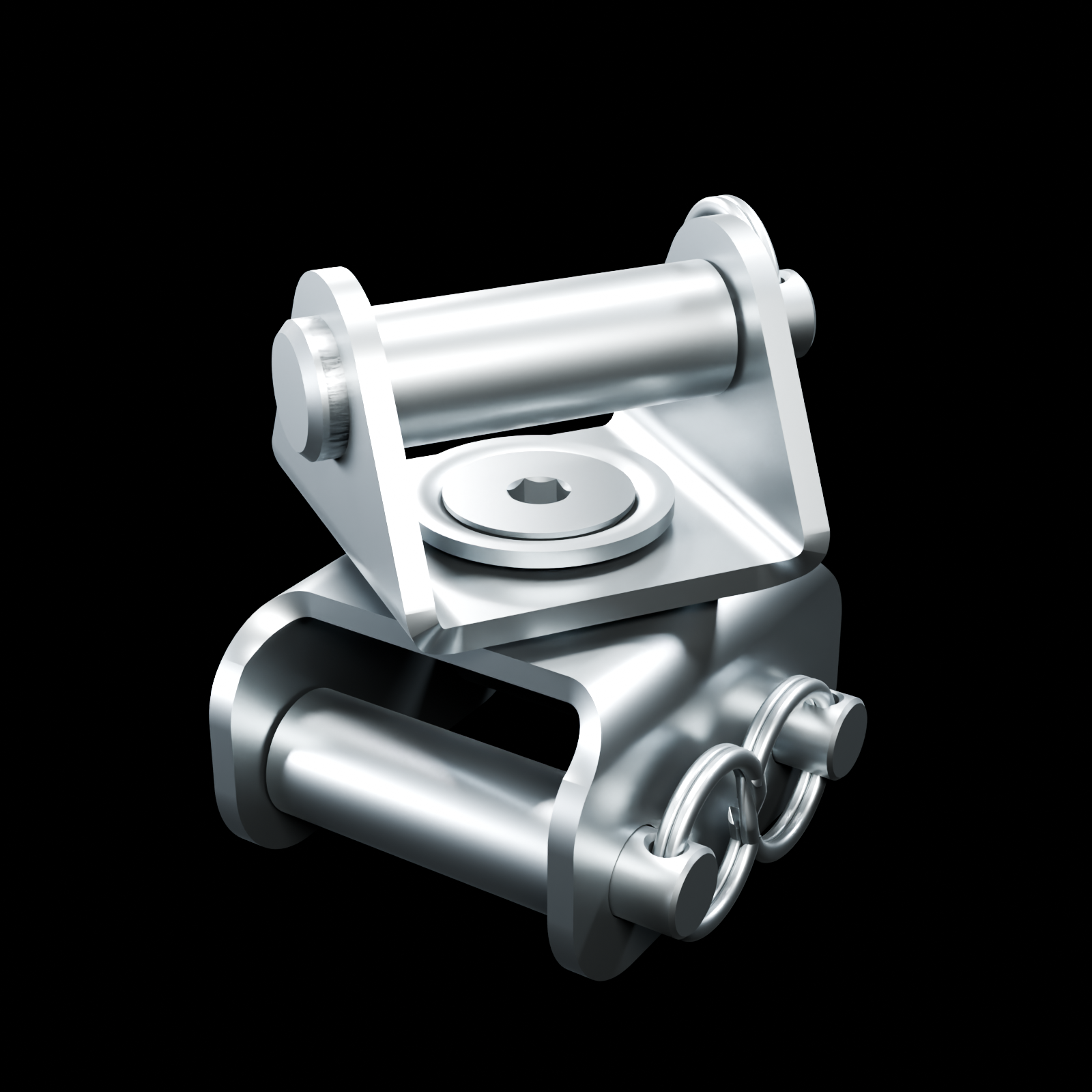

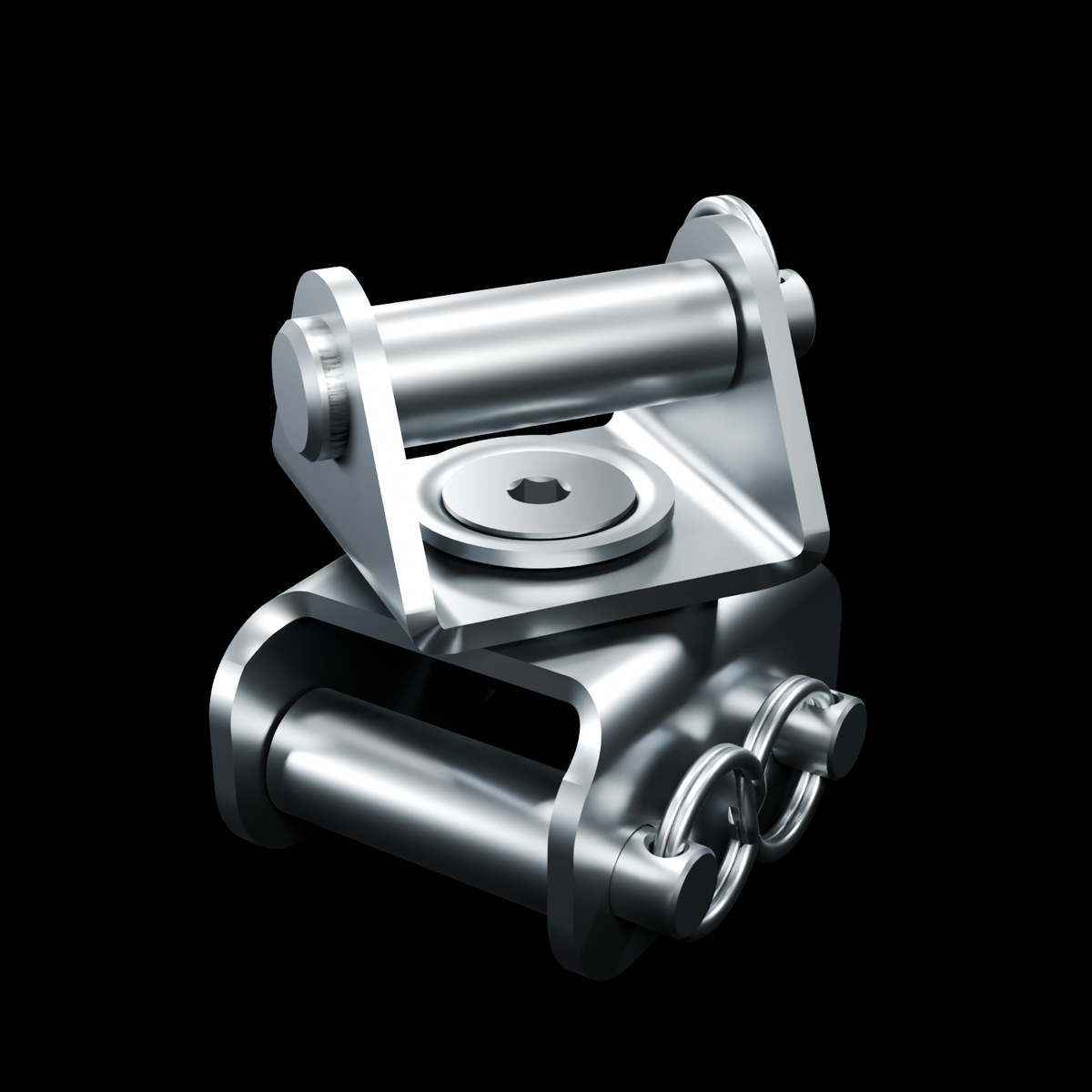

RolyPulley Swivel Kit installed between back-to-back RPD and RPS pulley bodies at a 90-degree routing angle - R02 finish-controlled

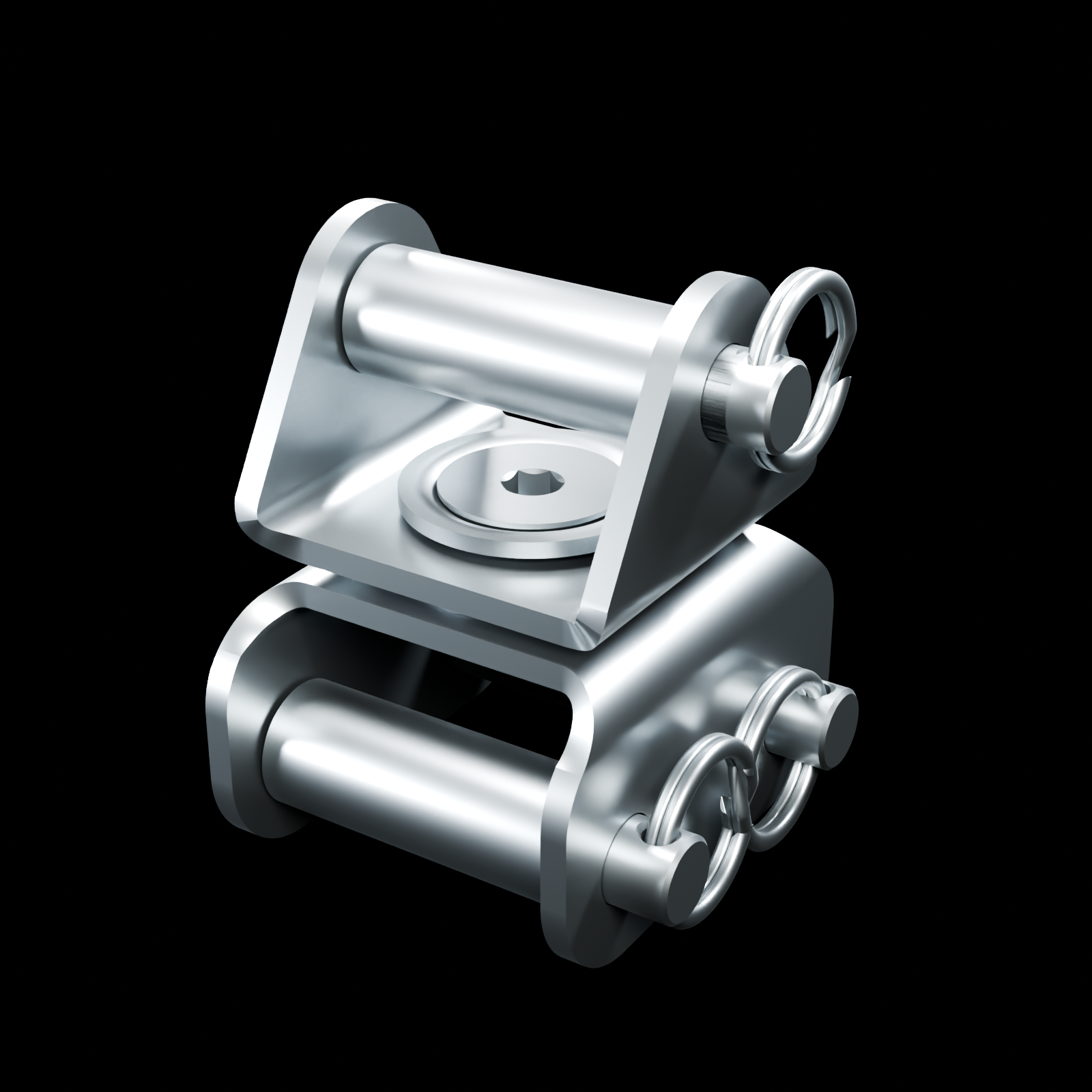

RolyPulley Swivel Kit with the paired pulley bodies rotated into an aligned routing position - R02 finish-controlled

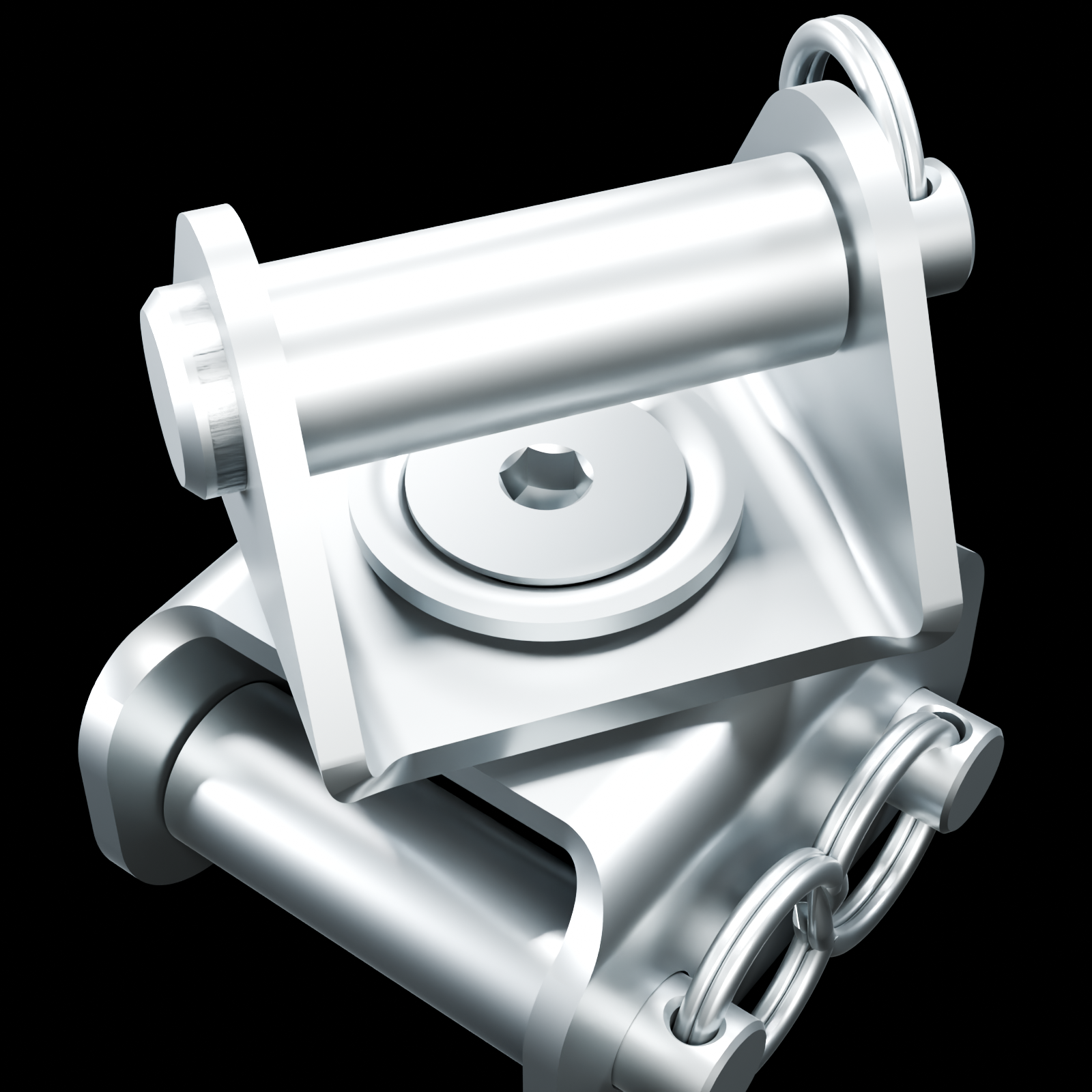

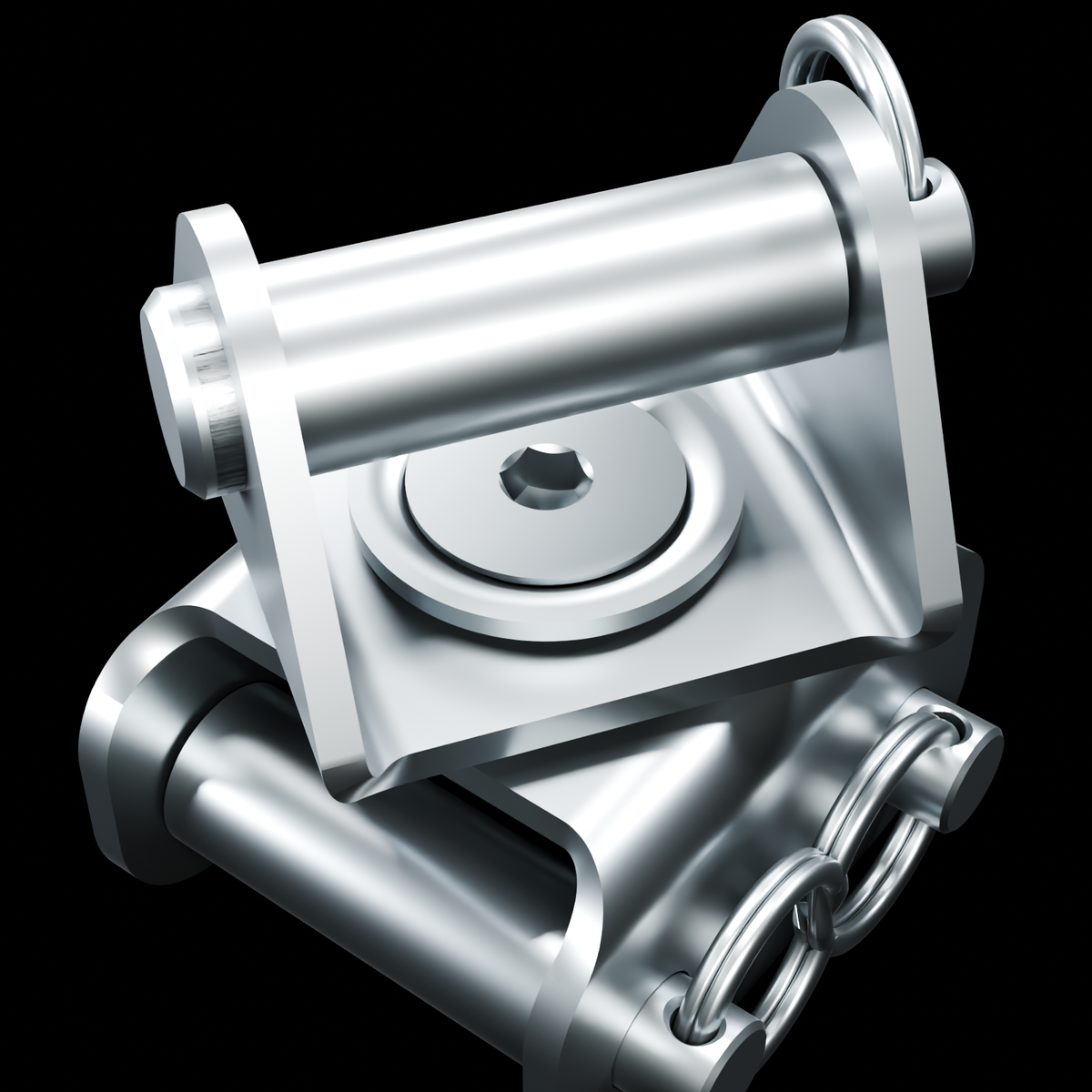

Close detail of the RolyPulley Swivel Kit low-profile bolt, FlushWashers, flat washer and FlushNut stack - R02 finish-controlled
3D MODEL / DRAG TO ROTATE
3D MODEL / DRAG TO ROTATE

ROLYPULLEY / PULLEYS FOR FLAT WEBBING

RolyPulley

RolyPulley Hardware Kit

RolyPulley Swivel Kit

$1.80 RELEASED
SKU
EXO-HDW-RP-SWIVEL-RAW-01

Order released variants directly. The rating of a complete setup depends on the selected webbing, anchors, hardware, layout, and installation.

01 / THREAD THE STRAP

Use flat webbing with a real pulley.

RolyPulley gives webbing a stainless roller for changing direction instead of dragging the strap over an edge.

02 / WHY FLAT WEBBING

Broad, low-profile, and easy to read.

Compared with round rope, flat webbing lies across a wider surface, packs into a slimmer profile, and makes twists easy to spot.

03 / CHOOSE THE SHAPE

Mount it, redirect it, or carry it with the strap.

Straight, Dually, Offset, Equip, and Webbing bodies cover common fixed, changing-direction, and strap-mounted layouts.

04 / KEEP IT SIMPLE

Replace the roller, pin, or ring when needed.

Small service parts are sold separately, so a worn or lost component does not automatically mean replacing the whole pulley.

HOW THIS ROLYPULLEY WORKS

A simple roller that lets flat webbing turn like rope.

Join two RolyPulleys back to back and let the pair turn with the strap path. The RolyPulley Swivel Kit is the matching low-profile hardware stack for placing two compatible pulley bodies together at one mounting point while allowing the joined pair to swivel freely.

What one kit includes

  • 1 × 1/4-20 × 3/8-inch flat-head internal-hex bolt
  • 2 × 3/4-inch FlushWashers
  • 1 × 3/4-inch flat washer
  • 1 × 1/4-20 FlushNut

How the stack works

The two FlushWashers seat the flat-head bolt and FlushNut into the outside faces of the back-to-back RolyPulleys. The flat washer separates the joined bodies at the swivel interface so the pair can rotate instead of binding together.

Choose a finish and pack size

Raw-stainless kits coordinate with raw RolyPulley hardware. Black-oxide kits coordinate with black hardware. The 10-kit pack includes ten complete stacks and is priced 30% below buying ten individual kits.

Application boundary

This hardware kit does not create a standalone load rating. Confirm the receiving RolyPulley geometry, bolt engagement, installation, anchors, strap path, and complete assembly requirements before use. The matching FlushNut Driver Bit is sold separately.

1 INCH / RPS / STRAIGHT

A single fixed redirect for a clean 1:1 path.

Mount RPS directly to the structure and keep the webbing path vertical, tangent to the roller, and concentric with its axle. RPS can also serve as the fixed upper pulley in the illustrated 2:1 concept.

RPS ideal 1 to 1 fixed vertical redirect concept
01 / FIXED REDIRECT

Ideal 1:1

One RPS changes direction while the pull and load remain on opposing vertical legs.

RPS fixed and RPW sewn moving pulley 2 to 1 routing concept
02 / FIXED + MOVING

Ideal 2:1

RPS carries the fixed redirect while sewn-end RPW moves with two supporting strands.

OPTIONAL WEBBING MANAGEMENT

Gather the long tails before they gather themselves.

Add the stainless WEBWINDER as its own serviceable product. It collects two 1-inch straps side by side and remains separate from the loaded system.

RolyPulley WEBWINDER holding two coiled one-inch purple webbing straps with four tails and stainless winding hardware.

RolyPulley WEBWINDER | Dual 1-Inch Strap Winder

$119.00

QUICK GUIDE

Three simple choices: a pulley, a strap, and a way to hold it.

Choose the pulley shape, match its width to the webbing, then add the buckle or connection that fits your setup.

01 / PICK A PULLEY

Choose how the strap should turn.

Use Straight for one fixed turn, Dually when the strap can approach from either side, Offset when the pulley needs space from its mount, and Equip or Webbing when the pulley travels with the strap or gear.

Browse RolyPulley
02 / ADD THE STRAP

Match the webbing width and ends.

Use 1-inch or 1.25-inch LaserWeb, then add a CAM buckle, WebWasher, or other matching connection where the strap needs to start, stop, or adjust.

Explore the collection
03 / REPLACE A PART

Keep the pulley you already have.

Replacement rollers, clevis pins, and split rings are available individually for compatible RolyPulley bodies.
